Installing switch for seat adjustment

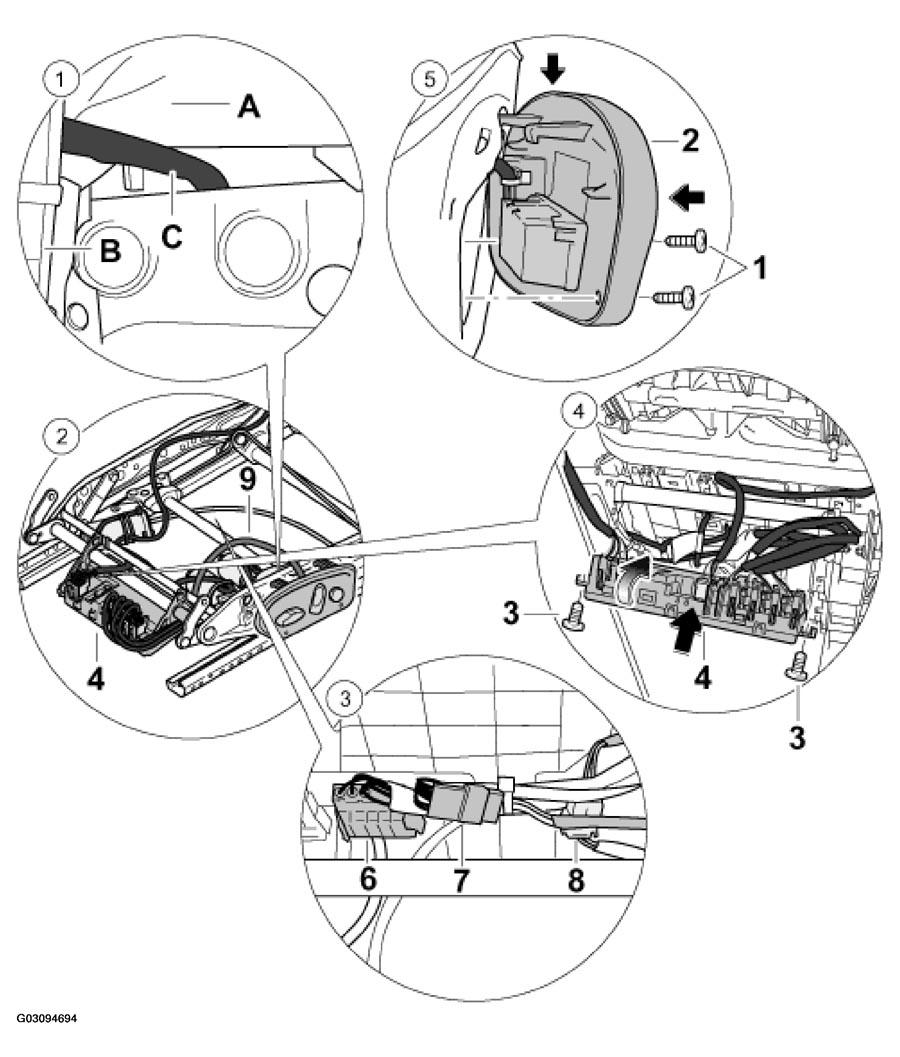

PROCEDURE FOR INSTALLING SWITCH FOR SEAT ADJUSTMENT
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Line -C-B- | Push the plugs of line -C-A- |
| 2 | Line route -9- | In connection with the seat memory control module, lay the line -9-4- |
| 3 | Plug connection -6, 7, 8- | Plug connection without control module for seat memory. Join plugs for -6-7-8- |
| 4 | Plug connection -arrow-4- | Clip plugs on to each other starting on the right, natural, blue, black and plug on to the control module -arrow-4-3- |
| 5 | Installing switch -2- | Insert the switch -in direction of arrow-1- |
| Installing front seat. | See REMOVING FRONT SEAT | |
