Routing of wiring harness for the backrest adjustment

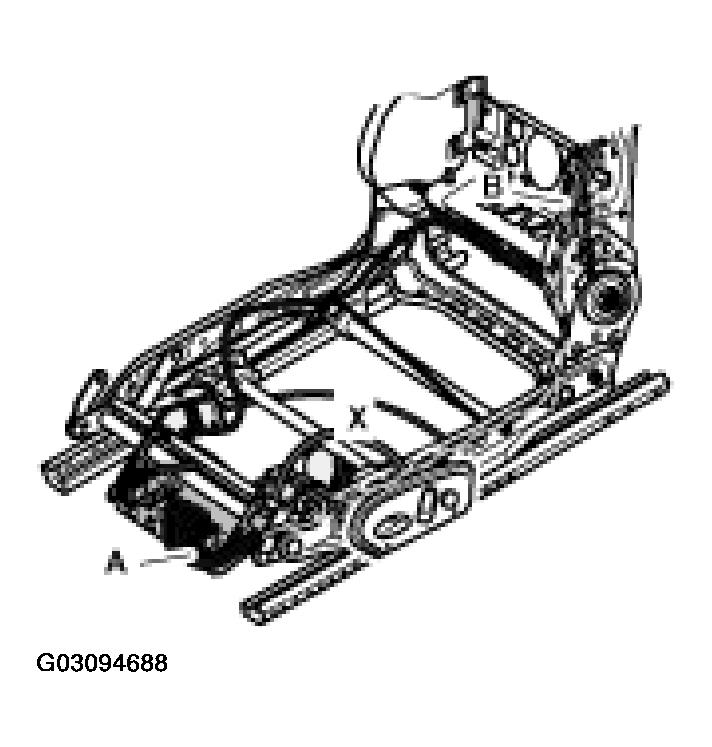

Fig 1: Routing Of Wiring Harness For Backrest Adjustment

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. -A-  Plug on the control module for the memory seat adjustment.
2. -B-  Plug on the backrest adjustment motor.
3. -X-  Plug connection - without control module for the memory seat adjustment.
