Removing front cushion carrier

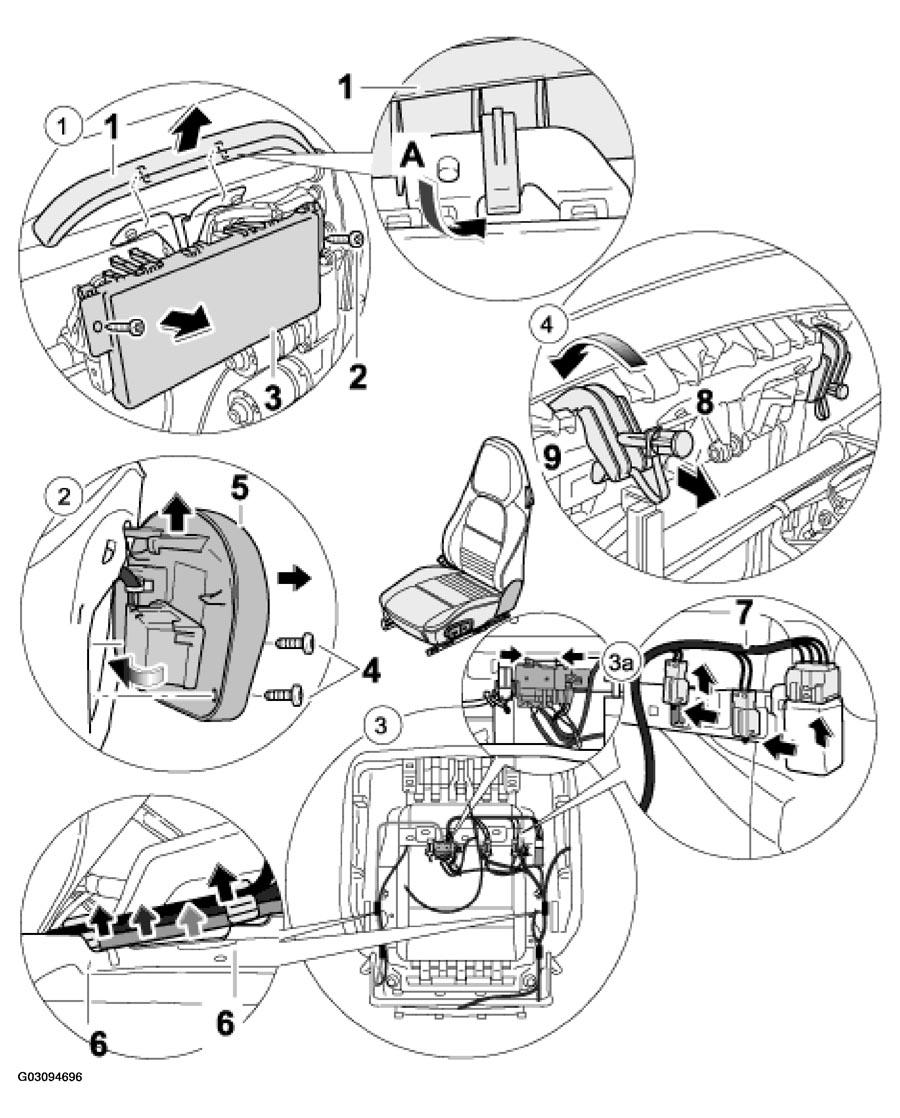

Fig 1: Removing Front Cushion Carrier

Courtesy of PORSCHE OF NORTH AMERICA, INC.

PROCEDURE FOR REMOVING FRONT CUSHION CARRIER

No.	Procedure	Instructions
1	Removing control module and cover	Lift both holders of the cover -1-direction of arrow A-2-9-
2	Removing switch for seat adjustment	Unscrew fastening screw -4-5-arrow-direction of arrow-
3	Disconnecting wiring harness	Disconnect electrical plug connection of the seat heating, unclip the lines from the metal clips -6-
3a	Removing wiring harness	Remove wiring harness -7-arrow-
4	Removing seat cushion from seat frame.	Insert the retainer -8-9-9-
