Installing front cushion carrier

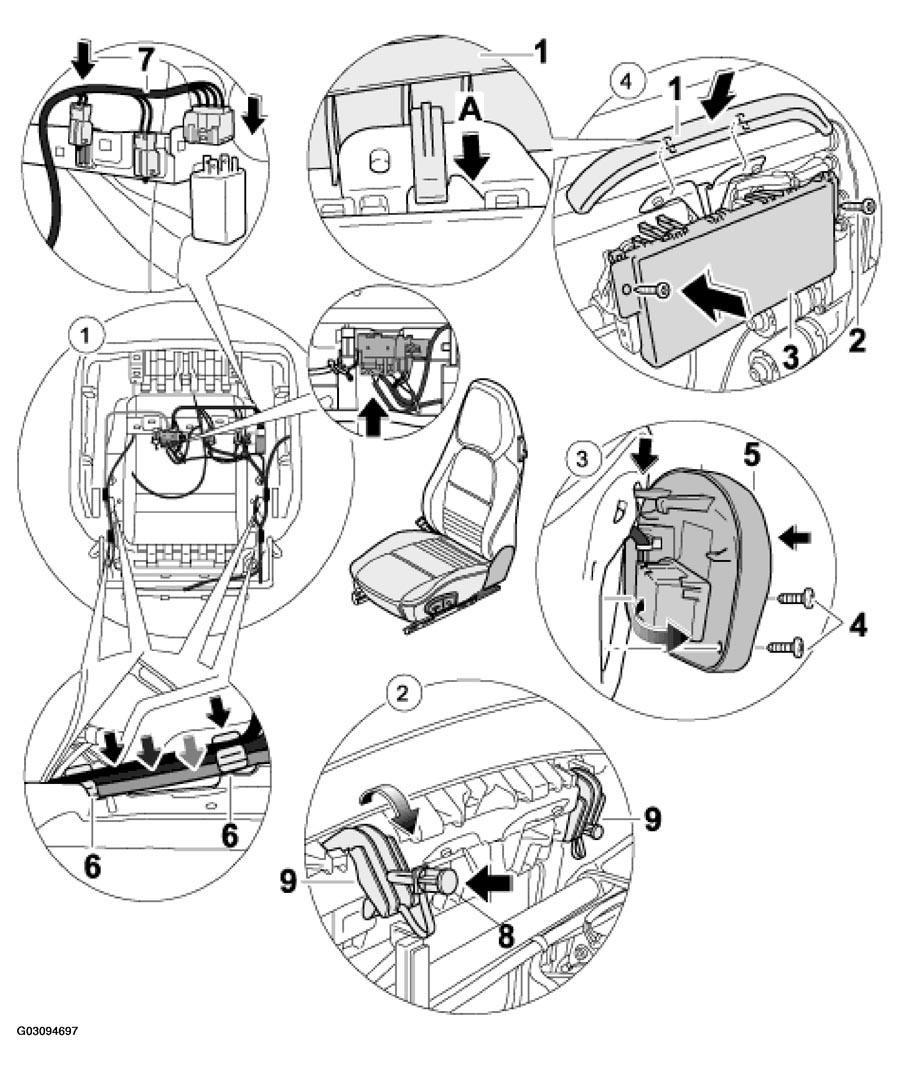

Fig 1: Installing Front Cushion Carrier

Courtesy of PORSCHE OF NORTH AMERICA, INC.

PROCEDURE FOR INSTALLING FRONT CUSHION CARRIER

No.	Procedure	Instructions
1	Installing wiring harness	Plug in electrical plug connection of the seat heating -7-direction of arrow-6-
2	Installing seat cushions on to seat frame	Position the seat cushion on to the seat frame and clip the plastic clip -9-8-
3	Installing switch for seat adjustment	Pull switch for seat adjustment -5-4-
4	Installing control module and cover	Position control module -3-2-1-direction of arrow A-
