Installing bucket seat GT2: Notes

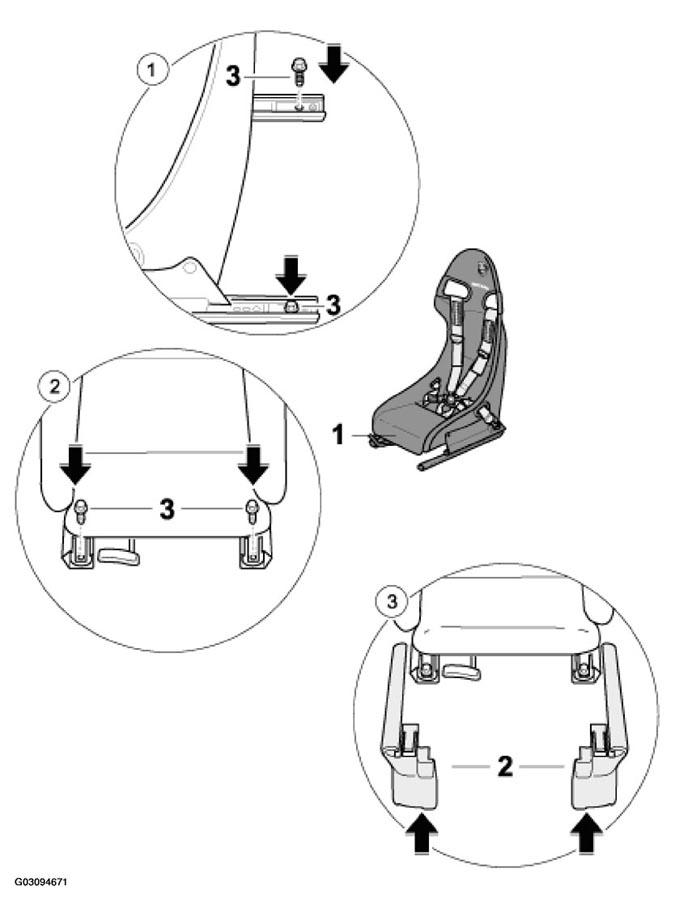

Fig 1: Installing Bucket Seat - GT2, As Of MY 2001
G03094671Courtesy of PORSCHE OF NORTH AMERICA, INC.
INSTALLING BUCKET SEAT - GT2

No. Procedure Instructions
1 Fitting seat screws at rear Position seat rails on the seat baseframe, screw the rear M10 x 28 Torx screws -3-65 Nm-
2 Fitting seat screws at front Move seat to rear limit position and screw the front M10 x 28 Torx screws -3-65 Nm-
3 Fit seat rail cover -2-  Push seat rail cover -2-
4 Fit six-point seat belt
