Installing car radio

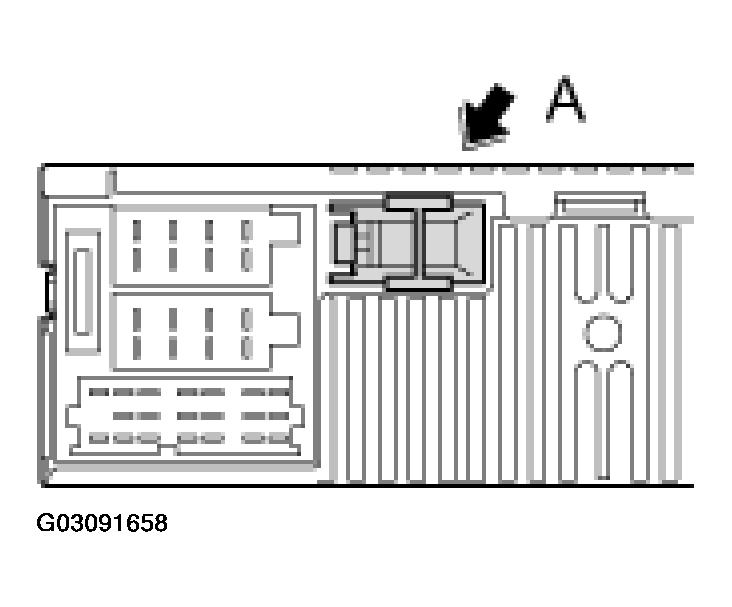

Before the new radio is installed, unlock and disconnect the protective plug -A- for the optical waveguide.

Fig 1: Disconnecting Protective Plug (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

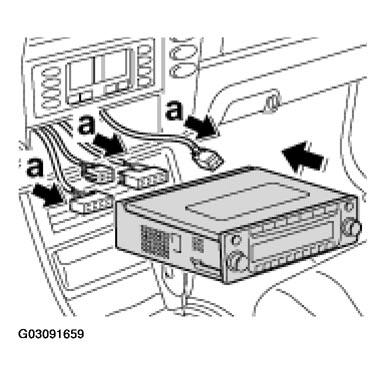

Press in electrical plug and optical waveguide plug on car radio until the plugs are felt to engage -a- .

Fig 2: Connecting Radio Electrical Plugs (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Before sliding the car radio into the installation slot, make sure that the electrical leads are not trapped by the car radio or damaged.
Push the car radio into the installation slot until the locks engage on the radio housing.
