Installing rear loudspeakers

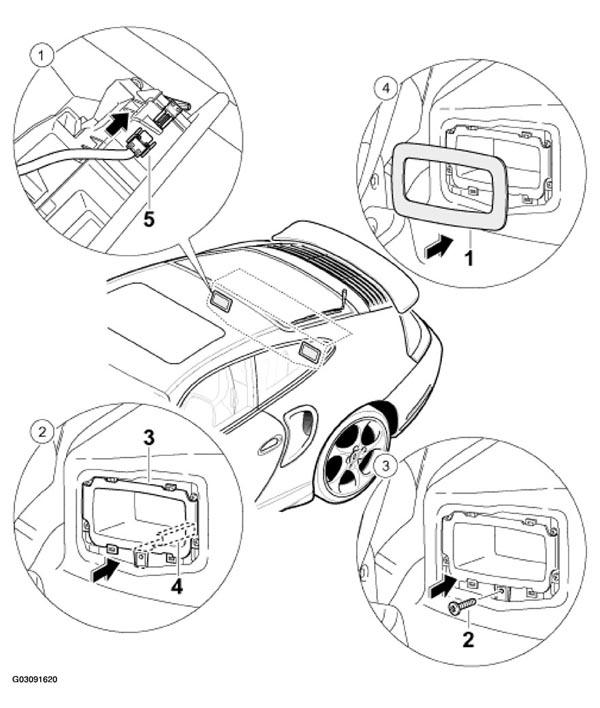

LOUDSPEAKER INSTALLATION - BOSE SOUND PACKAGE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Connecting plug connection | Push in the plug connection -5- | ||
| 2 | Positioning sound package | Push the sound package -3-4- | ||
| 3 | Fastening the sound package | Screw in the fastening screws -2- | ||
| 4 | Attaching the cover trim | Position the cover trim -1- | ||
|
||||
