Removing hands-free microphone

  1. Disconnect the battery and cover terminal or battery.
  2. Switch on the hazard warning light switch (button comes out).

    On the sides of the button, there are small openings that project beyond the dashboard insert.

  3. Insert two small screwdrivers into the openings and pull off the button -A-  toward the front.

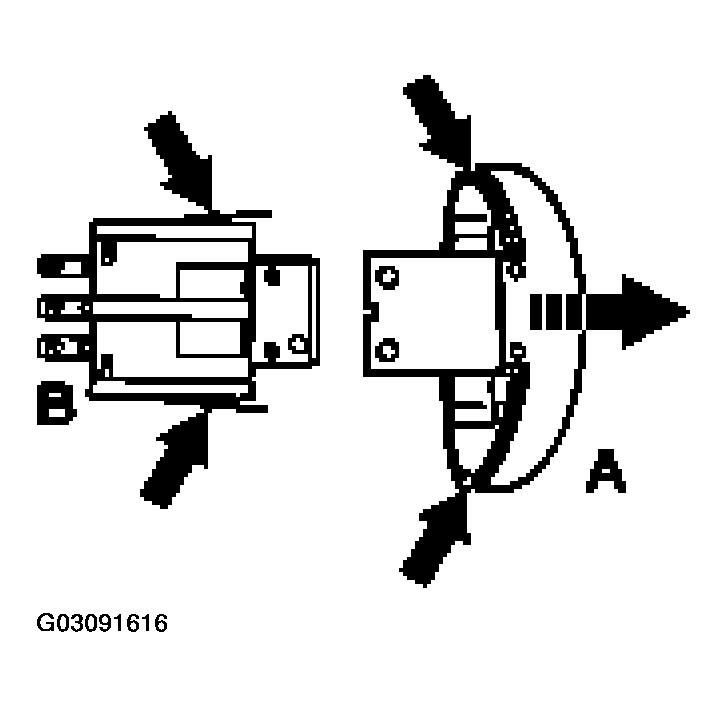

    Fig 1: Removing Hazard Warning Light Switch Button
    G03091616Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Unclip the collar from the dashboard insert.

    The hazard warning light switch -B-  is held in the dashboard insert by two locking hooks.

  5. Press the right locking hook toward the switch, grip the button holder with a pair of pliers and pull out the switch.
  6. Undo 5.0 x 30 Torx screw on the dashboard insert.
  7. Pull out hands-free microphone on the left side and undo the 5.0 x 30 Torx screw.

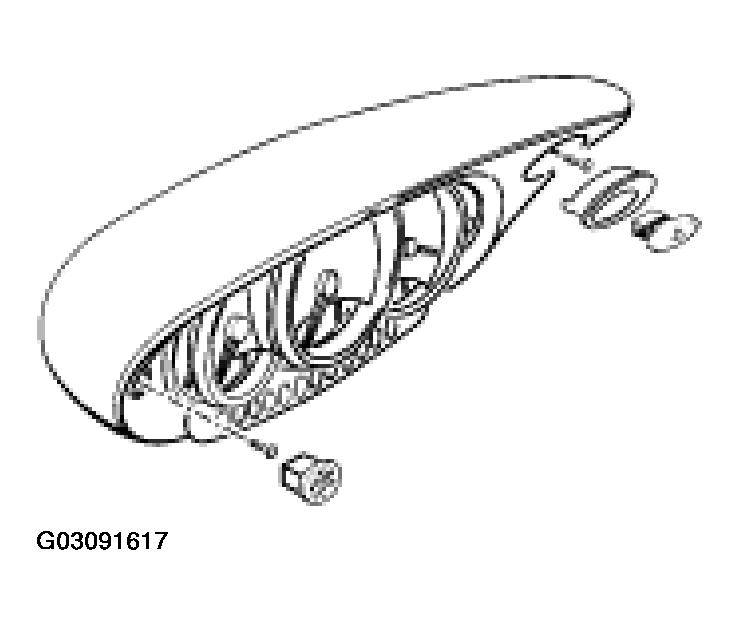

    Fig 2: Removing Torx Screw
    G03091617Courtesy of PORSCHE OF NORTH AMERICA, INC.
  8. Unclip the dashboard insert and disconnect the electrical plug connection from the hands-free microphone.
  9. Pull hands-free microphone out of the dashboard insert.
