Removing display and operator control unit (PCM)

  1. Unclip the -switch covers-  from below and let them dangle from the electric leads.

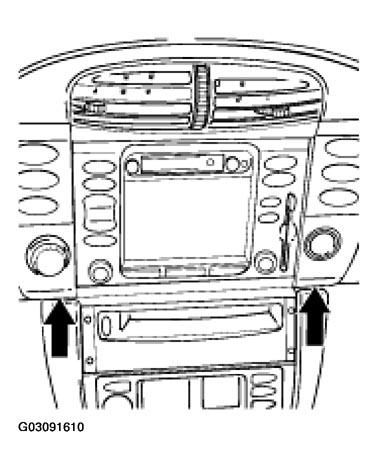

    Fig 1: Removing Switch Covers From Operator Control Unit (PCM)
    G03091610Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Press together both spring clamps on the display and operator control unit and carefully pull out.

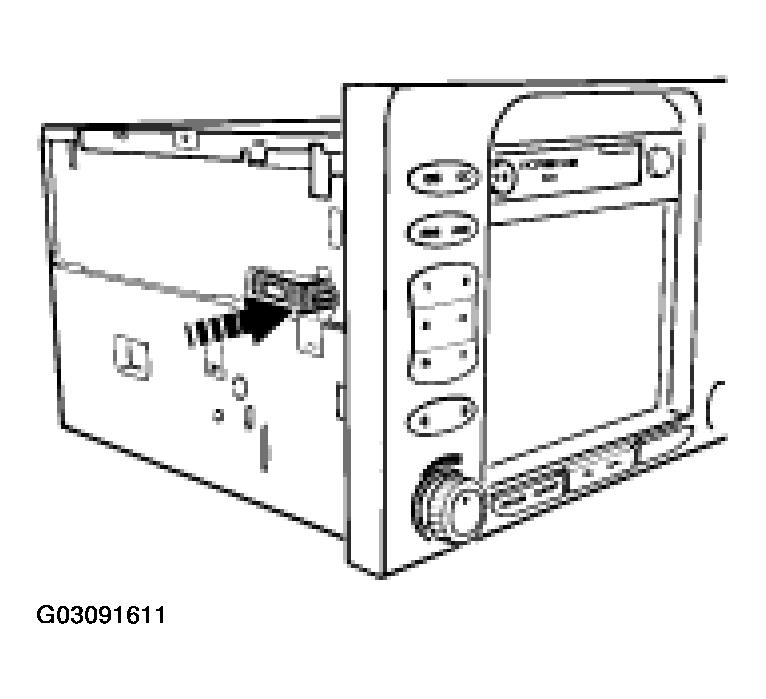

    Fig 2: Pressing Both Spring Clamps On The Display And Operator Control Unit
    G03091611Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Disconnect electrical plug connections from the display and operator control unit.
