Installing display and operator control unit (PCM 2)

NOTE:

If a new PCM is being installed, the navigation module must be removed from the old PCM and installed in the new PCM.
If the old PCM is being reinstalled, then begin at Step 6 .

Before the new PCM is installed, unlock and disconnect the protective plug -A- for the optical waveguide.

Fig 1: Disconnecting Protective Plug For Optical Waveguide (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Unclip the cover on the new and old PCM.
With the PCM removed, carefully lever out the navigation module using a screwdriver.

Fig 2: Removing Navigation Module (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert the navigation module into the PCM to be installed.

Fig 3: Inserting Navigation Module Into PCM (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

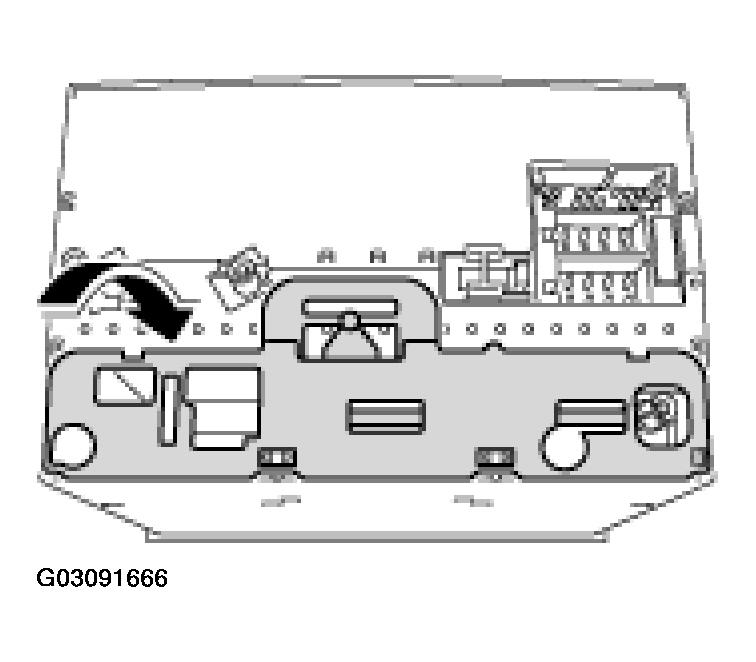

Position the cover and press in place.

Fig 4: Installing Cover (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

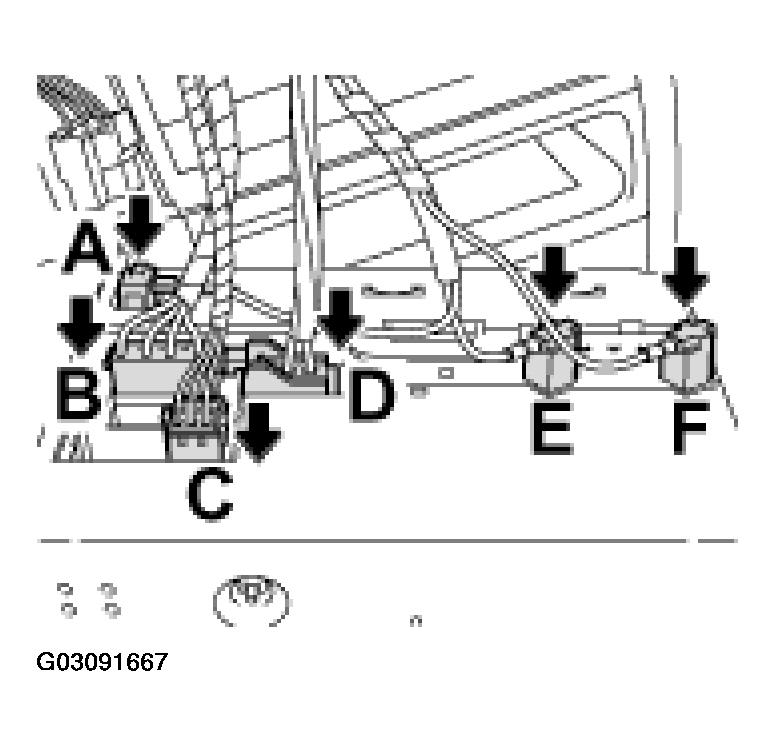

Push on the electrical plug connections for the display and operator control unit in the sequence -D, B, A- and the antenna plugs -A, E and F- until they are felt to engage.

Fig 5: Installing Electrical Plug Connections For The Display (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check that the locking tabs on the PCM are out -arrow- . Refer to Fig 6 . Open the lock with a hexagon-socket wrench if necessary.

Fig 6: Checking Locking Tabs On PCM (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Before sliding the PCM into the installation slot, make sure that the electrical leads are not trapped by the PCM or damaged.
Push the navigation unit into the installation slot until the locks engage on the PCM housing.
Connect the electrical plug connections to the switch cover.

Fig 7: Connecting Electrical Plug Connections To Switch Cover (As Of MY 2003)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Position switch cover and press in until it is felt to engage.
NOTE: After installation of a new display and operator control unit, the system must be activated with the Porsche System Tester!
Connect and switch on the Porsche System Tester 2.
