Installing control module for telephone

  1. Connect the electrical plug connections on the control module.

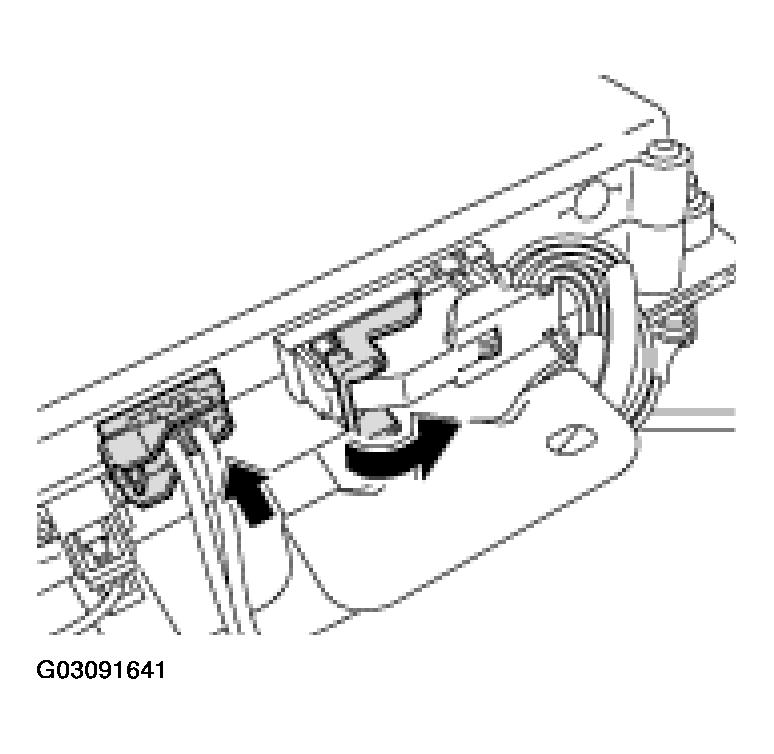

    Fig 1: Connecting Electrical Plug Connections To Control Module For Telephone
    G03091641Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Position the control module on the holder and screw the fastening screws tight. Tightening torque 10 N.m (7.5 ftlb.).

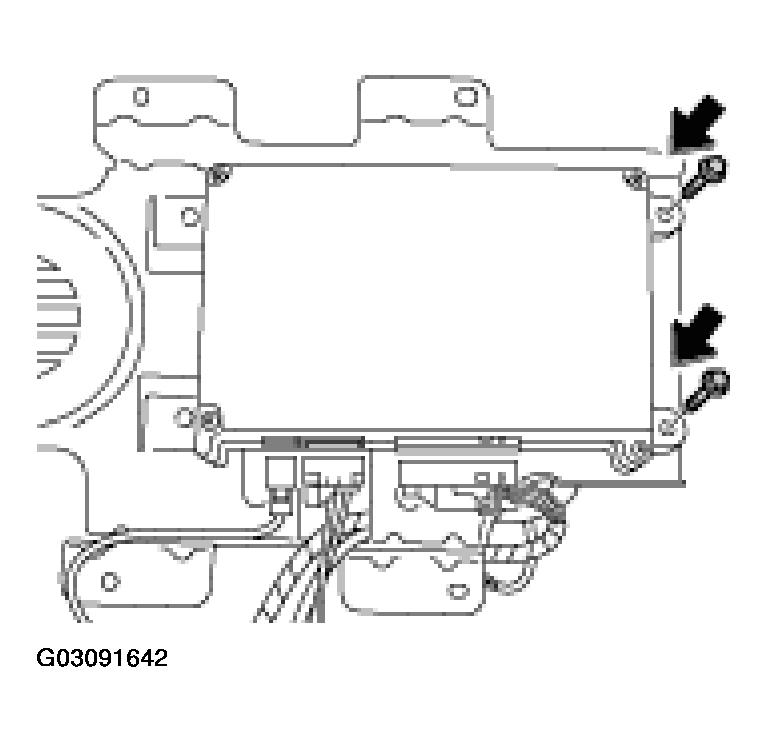

    Fig 2: Installing Control Module For Telephone On Holder
    G03091642Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Lay the holder with the control module on the floorpan and fasten with the 4 fastening screws.

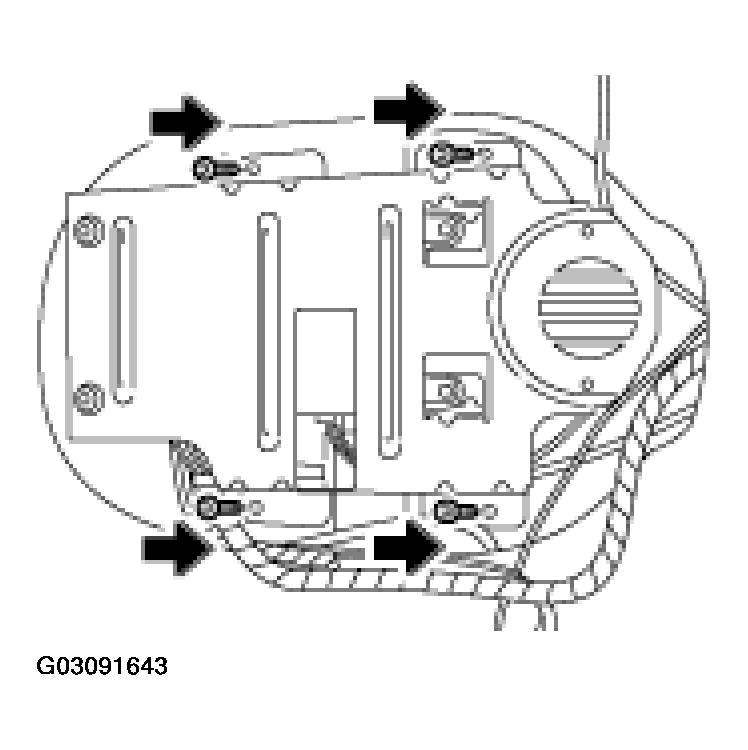

    Fig 3: Installing Fastening Screws To Control Module For Telephone
    G03091643Courtesy of PORSCHE OF NORTH AMERICA, INC.
