Installing control module for parking assistant

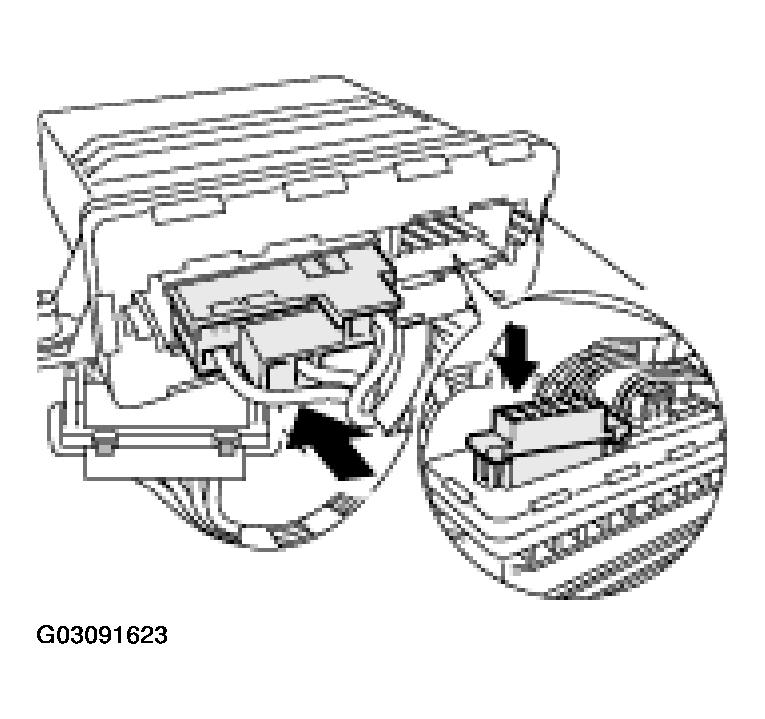

Insert both plugs into the control module until they engage.

Fig 1: Installing Plugs Into Control Module For Parking Assistant
Courtesy of PORSCHE OF NORTH AMERICA, INC.

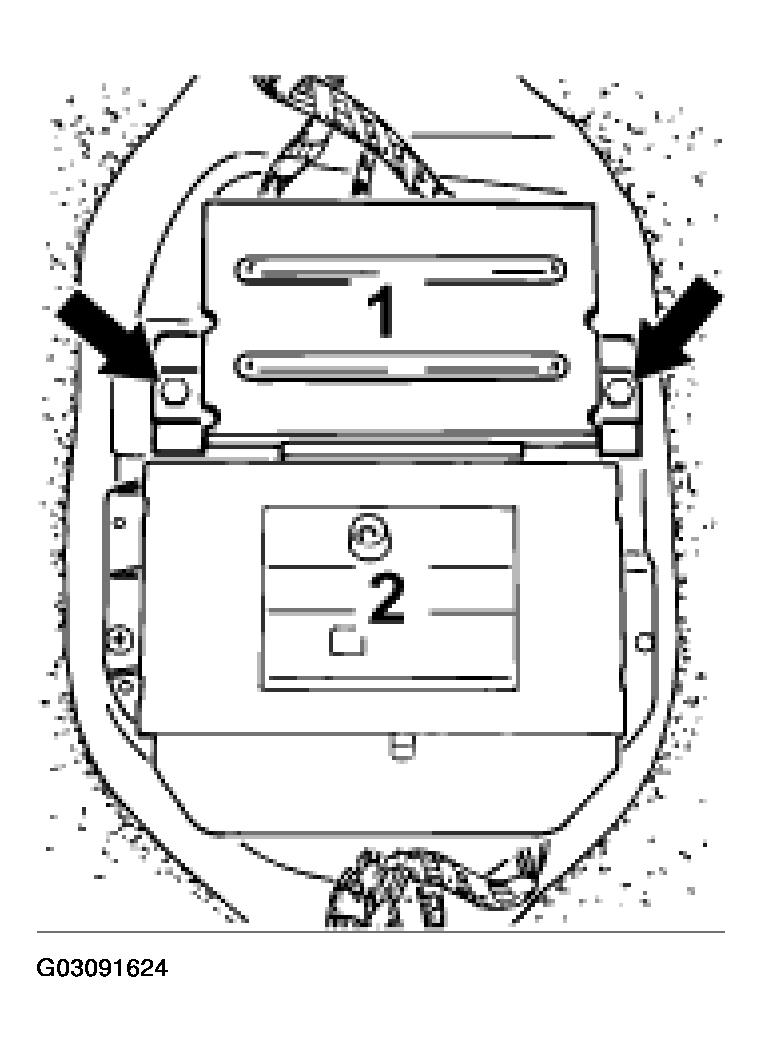

Fit the control module onto the cover with both fastening screws.
Position the cover and screw tight with the fastening screws -arrow-.

Fig 2: Installing Cover For Control Module For Parking Assistant
Courtesy of PORSCHE OF NORTH AMERICA, INC.
