Removing control module for antenna
- Remove the right cover under the instrument panel.
- Remove the ignition key and switch off the radio.

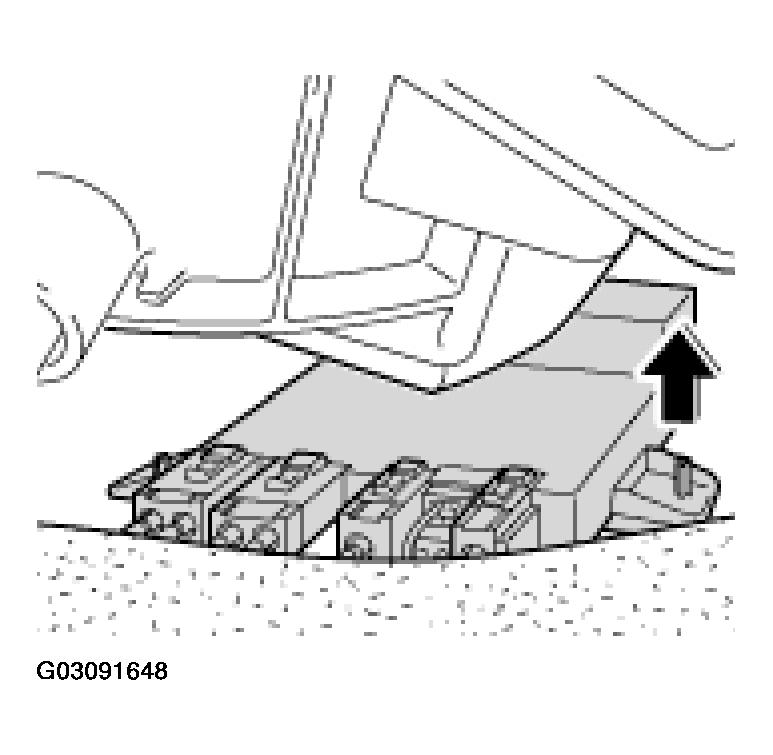

- Lever the control module on the left side out of the clip and pull it to the right out of the holder.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

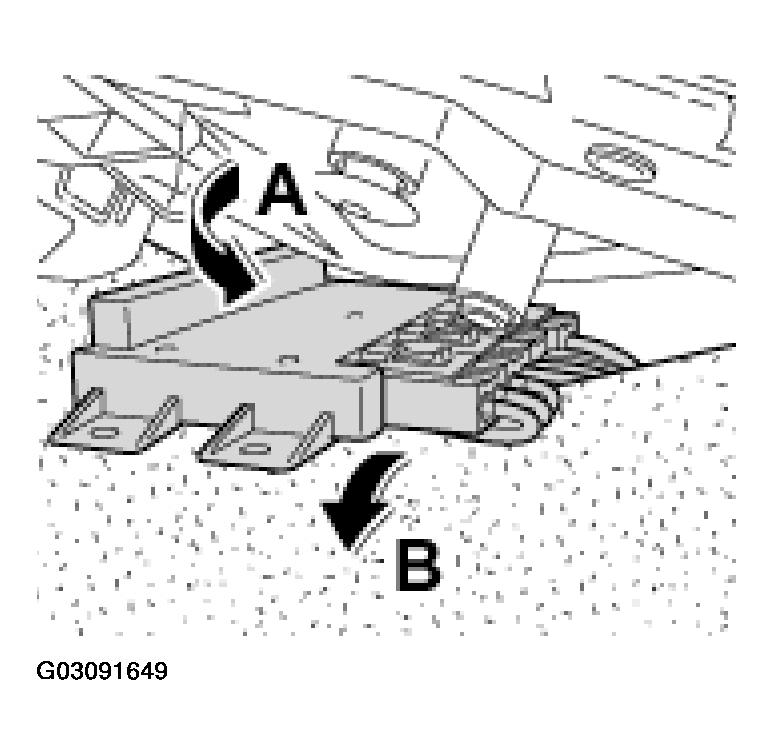

- Swivel the control module in the direction of the arrow -A-
and carefully pull it over the passenger compartment carpet -B-
- pay attention to the length of the lead. Refer to Fig 2
.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

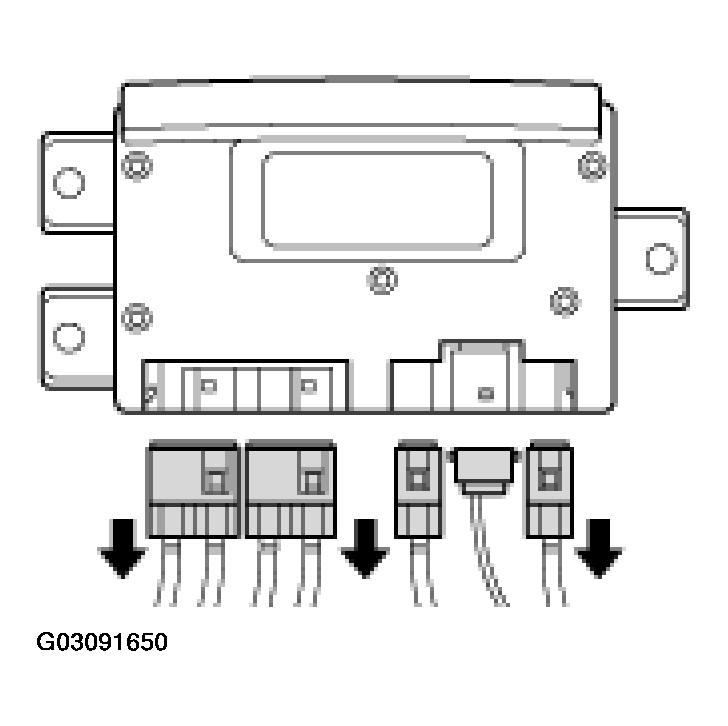

- Disconnect the electrical plugs successively.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
