Installing control module for antenna

Connect the electrical plugs successively.

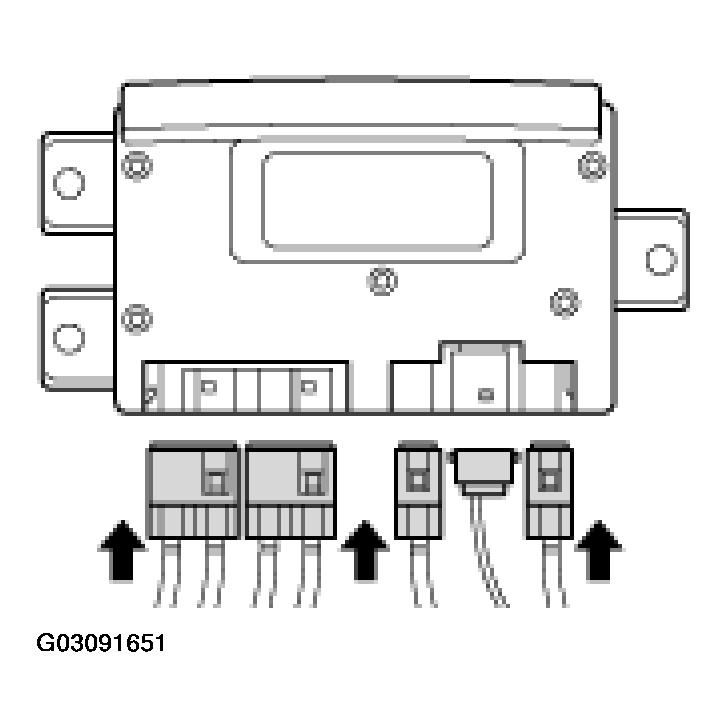

Fig 1: Connecting Electrical Plugs To Control Module For Antenna
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Carefully push the control module over the passenger compartment carpet -B- and position the module in the holder -A-. Refer to Fig 2 .

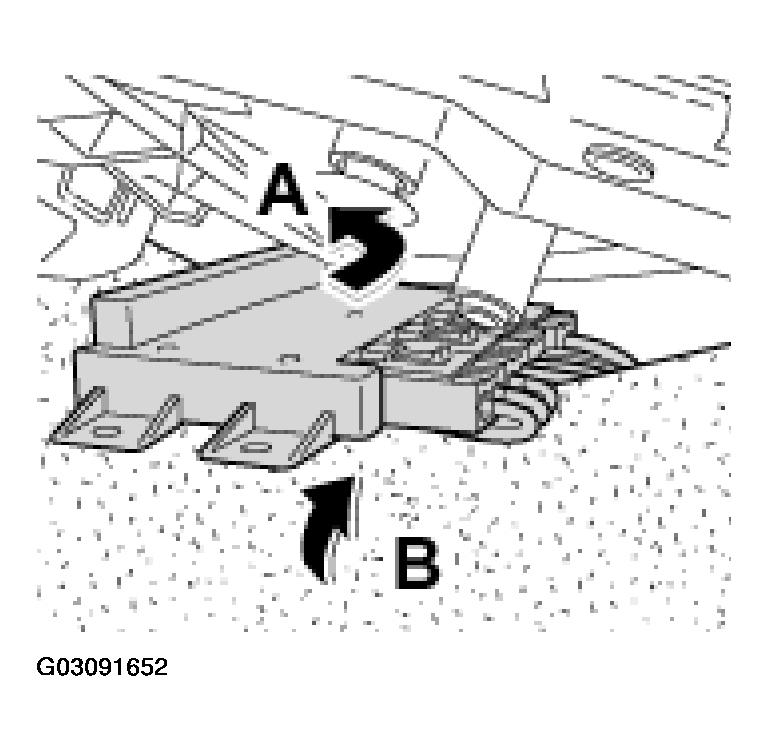

Fig 2: Installing Control Module For Antenna
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fasten the control module with the clip on the holder.

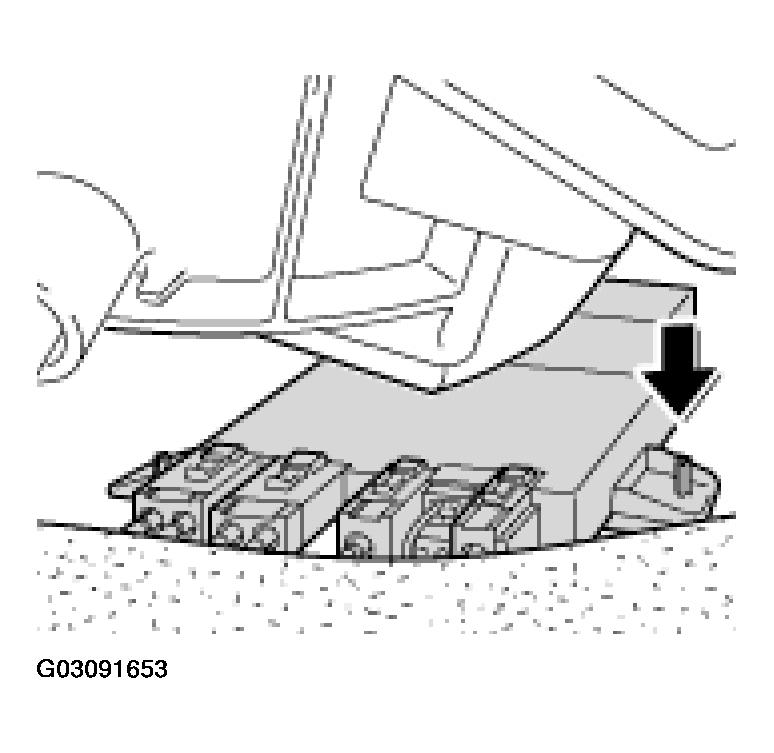

Fig 3: Installing Control Module For Antenna Clip
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Install the right cover under the instrument panel.
