Installing inner EMERGENCY STOP switch

NOTE: The necessary EMERGENCY STOP switch is delivered depending on the additional equipment present.

EMERGENCY STOP switch in the centre console M 581.

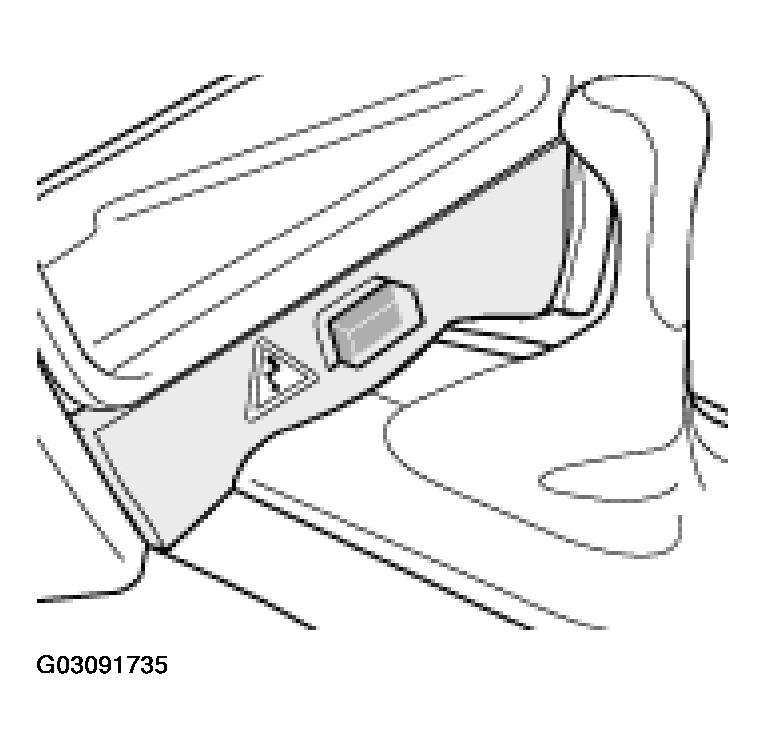

Fig 1: Identifying Emergency Stop Switch (In Centre Console M 581) - GT2, As Of MY 2001
G03091735Courtesy of PORSCHE OF NORTH AMERICA, INC.

EMERGENCY STOP switch - without centre console M 581 - in front of shift lever.

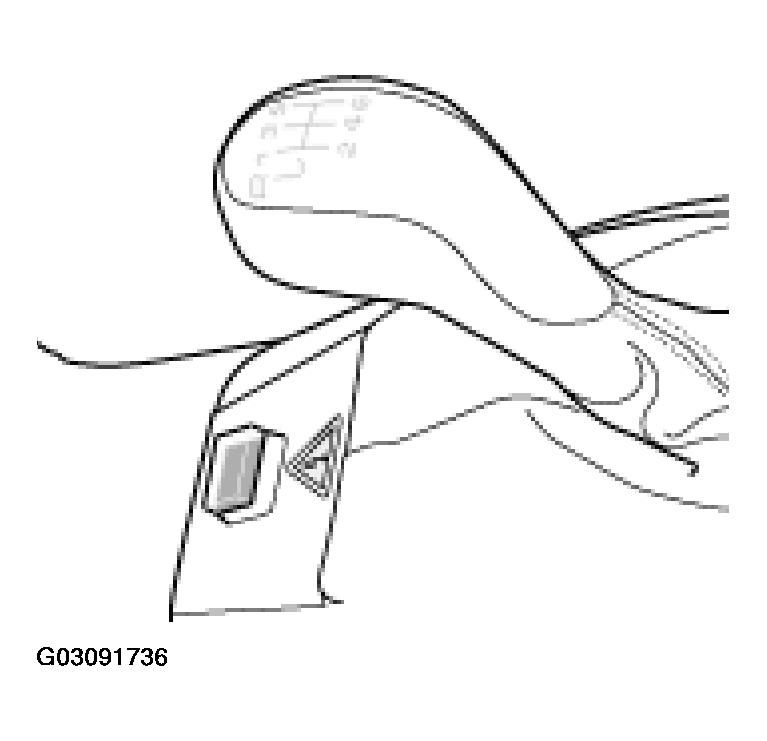

Fig 2: Identifying Emergency Stop Switch (Without Centre Console M 581) - GT2, As Of MY 2001
G03091736Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Carefully unclip the standard cover trims upwards with a suitable tool (for example, screwdriver; plastic spatula).
  2. The 3-pin plug connection required for the EMERGENCY STOP switch is located under the cover in front of the shift lever and is marked with a white identification tape -A-  . Connect the 3-pin plug to the plug connection of the EMERGENCY STOP switch and clip the relevant cover back into place.

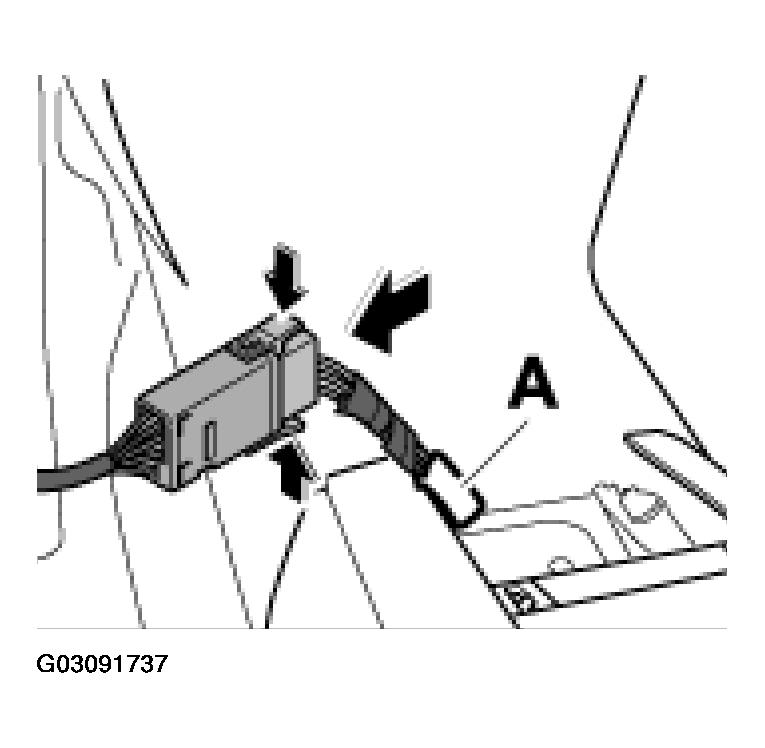

    Fig 3: Identifying 3-Pin Plug Connection For The Emergency Stop Switch - GT2, As Of MY 2001
    G03091737Courtesy of PORSCHE OF NORTH AMERICA, INC.
