Adjusting caster

WARNING: This page is about a different variant/trim than selected.

With the fastening nut (C) loosened, adjust the caster by turning the special screw (A).

Adjusting values and suspension alignment in WHEELS, TIRES, SUSPENSION ALIGNMENT .

Tighten fastening nut (C) to 160 N.m (118 ftlb.).

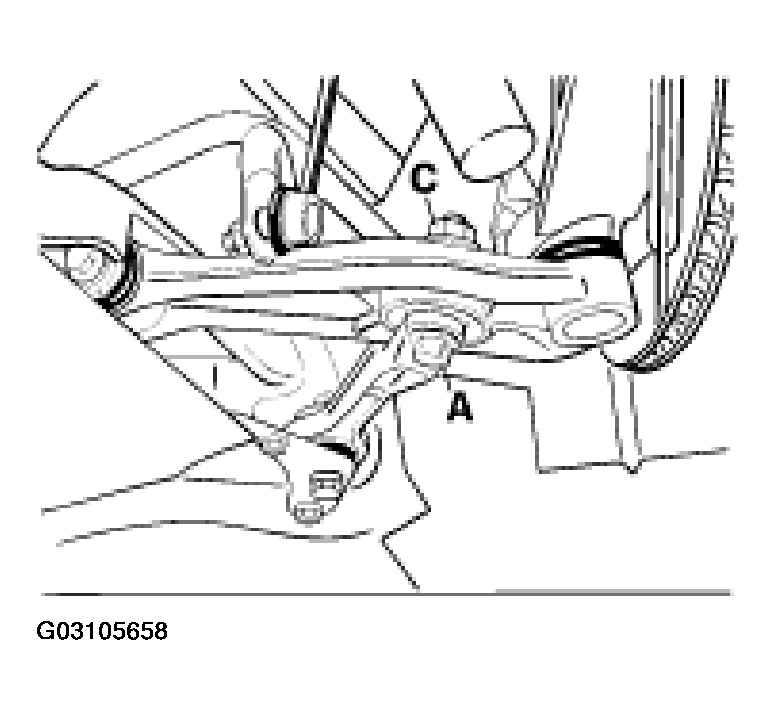

Fig 1: Adjusting Caster

Courtesy of PORSCHE OF NORTH AMERICA, INC.

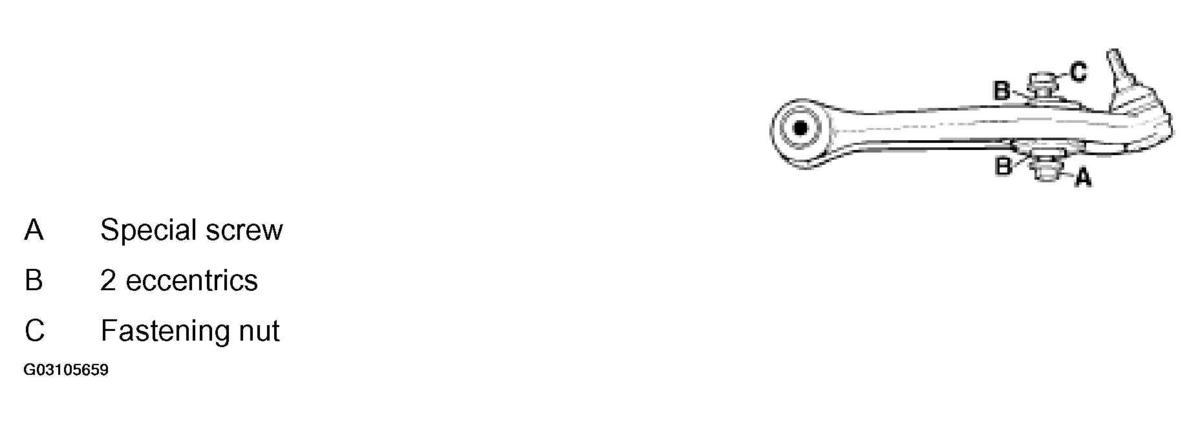

Fig 2: Identifying Special Screw, Eccentrics And Fastening Nut

Courtesy of PORSCHE OF NORTH AMERICA, INC.
