Connector assignment for air-conditioning control module: Notes

The two plugs, A and C, are replaced by networking (used by CAN-Comfort Bus). The signals required for function or control are exchanged via the CAN Bus lines CAN Comfort high and CAN Comfort low.

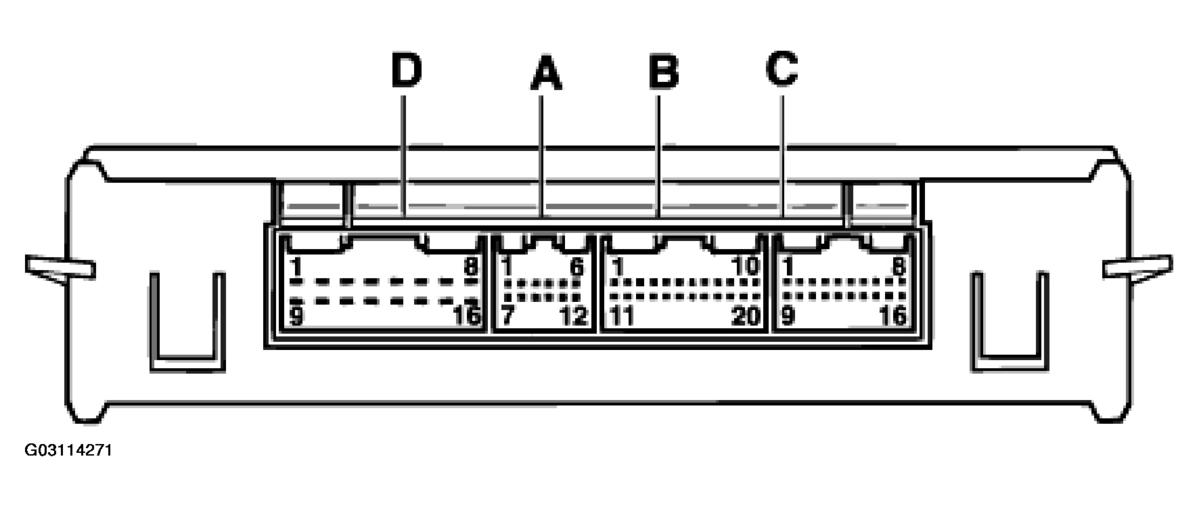

Fig 1: Identifying Air-Conditioning Control Module Connector Terminals

Courtesy of PORSCHE OF NORTH AMERICA, INC.
