Tool for holding the free-wheel pulley

NOTE: Only for vehicles with manual transmission!
  1. Use an a/f 17 multiple-tooth adapter to hold the free-wheel pulley.
  2. A/f 17 multiple-tooth adapter.

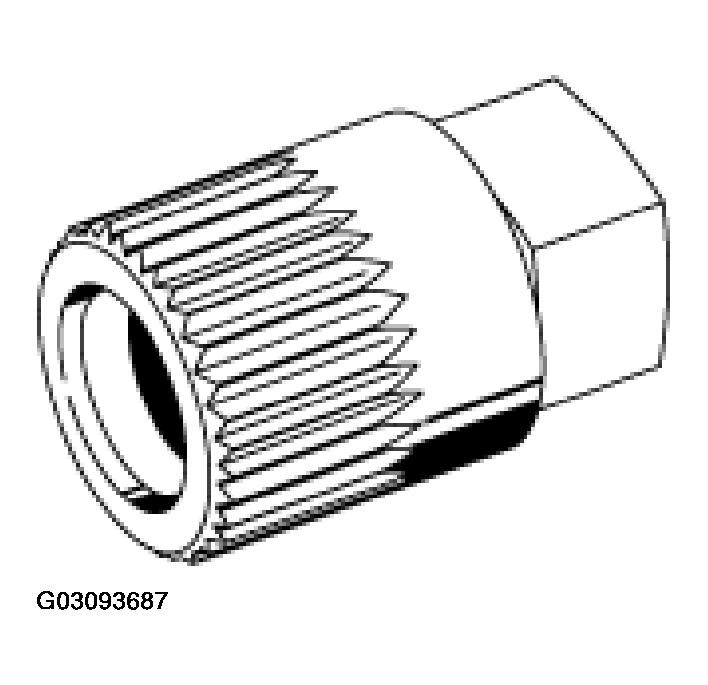

    Fig 1: Identifying A/f 17 Multiple-Tooth Adapter
    G03093687Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Counter with a double ring wrench when tightening with the a/f 17 multiple-tooth adapter.
  4. The shaft is tightened to the prescribed tightening torque of 80 +/- 5 Nm (59 +/- 3.5 ftlb.) using the screwdriver insert (a/f 10 internal serration screw) and torque wrench.
