Welding wheel housing, lower shell and outer side members into the body

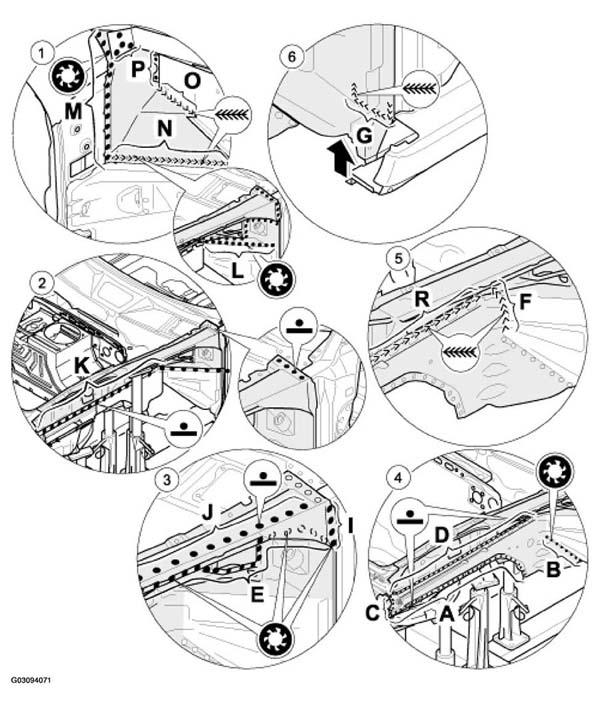

WHEEL HOUSING, LOWER SHELL AND OUTER SIDE MEMBERS WELDING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Plug-welding wheel housing/hinge pillar, front wall and cross member under shielding gas | Weld the spare wheel housing to the front wall -N, O-M-P, L- |
| 2 | Spot-welding the wheel housing | Spot-weld the wheel housing to the outer side member -K- |
| 3 | Welding the lower shell under shielding gas | Plug-weld the lower shell to the wheel housing -J, E, I- |
| 4 | Welding outer side member under shielding gas and with spot welds | Spot-weld the outer side member to the inner side member -A, D, C-B- |
| 5 | Welding inner/outer side members and front wall under shielding gas | Weld inner side member to outer side member -E-F- |
| 6 | Welding side member/support shell under shielding gas | Weld side members to the support shell -G- |
