Welding in front wall
FRONT WALL WELDING PROCEDURE

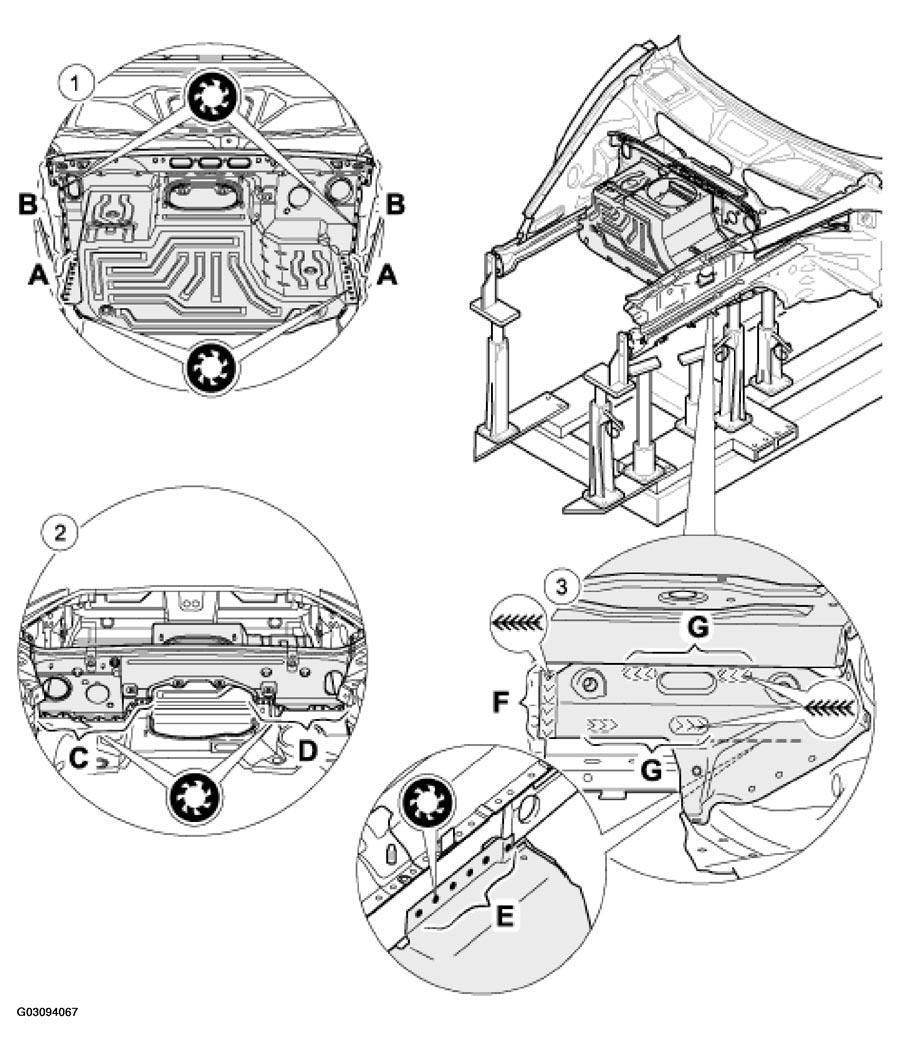

| No. | Procedure | Instructions |
|---|---|---|
| 1 | Plug-welding front wall/side members and wheel housings | Plug-weld front wall to the side members and wheel housing -A, B- |
| 2 | Plug-welding radiator tank/front wall. | Plug-weld radiator tank to the front wall -C, D- |
| 3 | Welding the front wall/side members under shielding gas | Weld front wall at the bottom to the side member -E-F, G- |
