Preparing front wall for installation and fitting

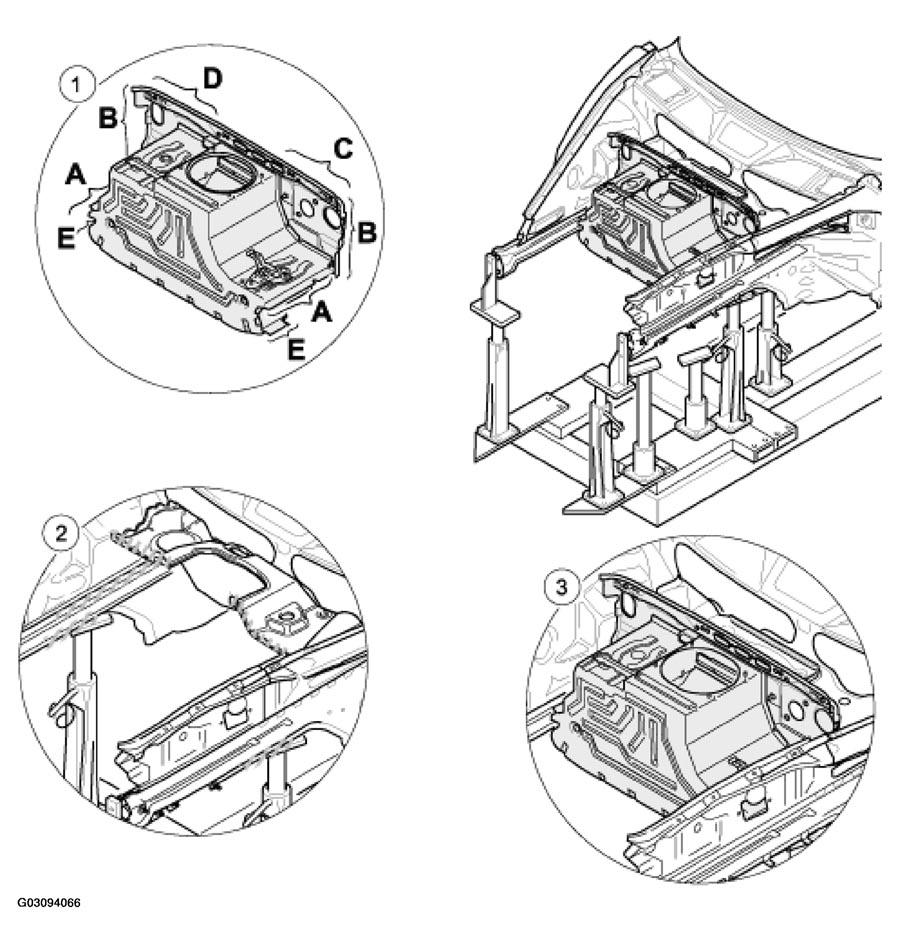

Fig 1: Preparing Front Wall For Installation And Fitting

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT WALL PREPARING PROCEDURE

No.	Procedure	Instructions
1	Preparing spare parts	Remove the factory-applied primer on the welding areas of the spare parts -A, B, C, D, E,-
2	Cleaning the welding areas	Remove underbody coating and paint layers, etc. from the welding areas of the body with a hot-air gun or rotary brush.
3	Inserting the front wall into the body	Adjust the spare front wall to the side members and the radiator tank. Fitting of the following parts. Refer to REPLACING CLOSING PANEL
