Welding in closing panel and front floor panel

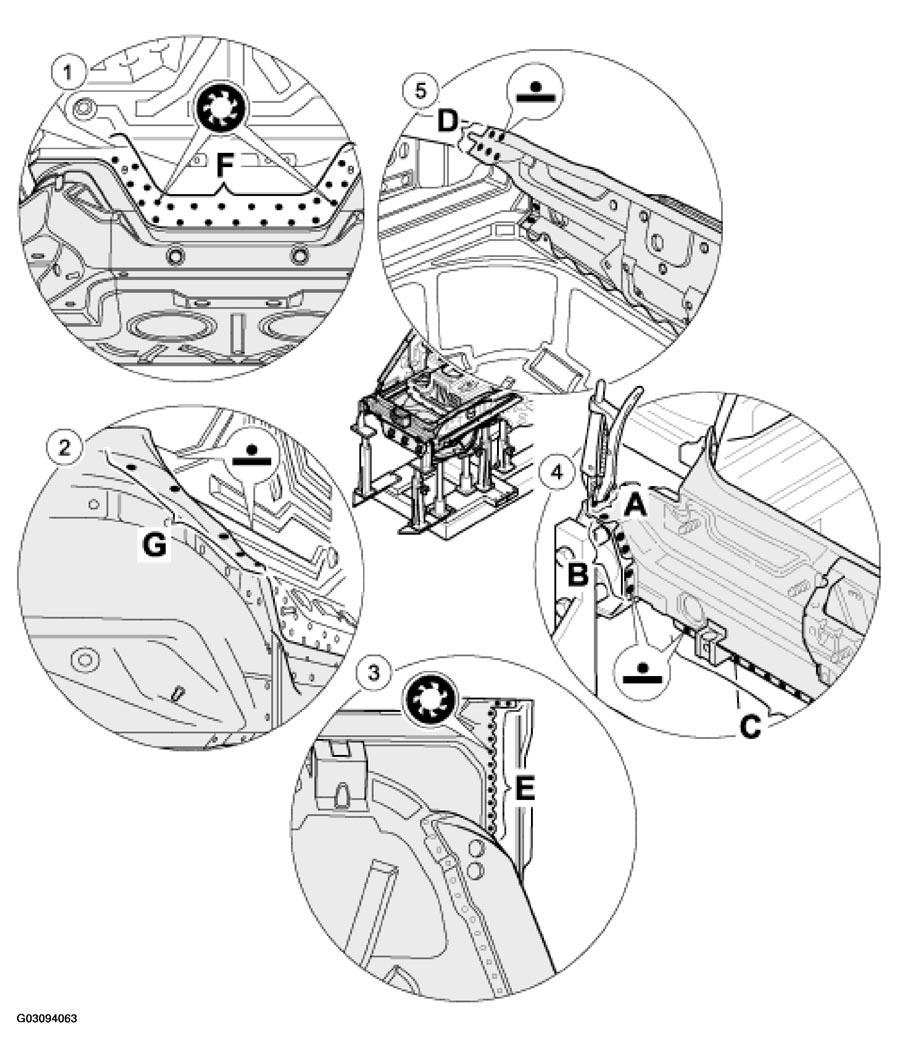

Fig 1: Welding In Closing Panel And Front Floor Panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CLOSING PANEL AND FRONT FLOOR PANEL WELDING PROCEDURE

No.	Procedure	Instructions
1	Plug-welding front floor panel to the bulkhead at the middle under shielding gas	Plug-weld the front floor panel to the bulkhead at the middle -F-
2	Plug-welding front floor panel to the bulkhead under shielding gas	Plug-weld radiator tank to the front floor panel -G-
3	Plug-welding the front floor panel to the side members under shielding gas	Align the front floor panel with the side members on the left and right -E-
4	Spot-welding the closing panel	Spot-weld the closing panel to the front floor panel -C-A, B-
5	Spot-welding the closing panel to the front floor panel	Spot-weld the closing panels with the wheel housings on the left and right -D-
