Removing and installing air guide

Removing air guide

• Pull air guide -1-  out of the lines -A and B-.

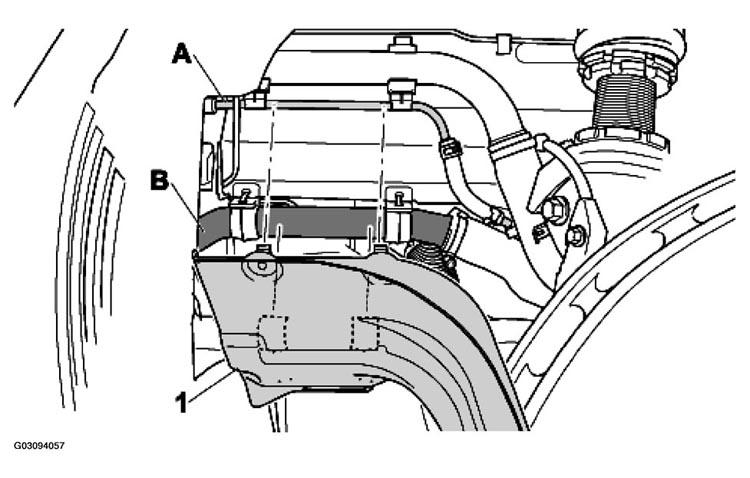

Fig 1: Removing And Installing Air Guide - GT2

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Installing air guide

• Push air guide -1-  on to the lines -A and B-.
