Removing the car radio

  1. Remove the car radio with special tool 9570/1. Refer to Fig 1 .
  2. Engage the special tool to the right and left in the slits provided in the car radio.

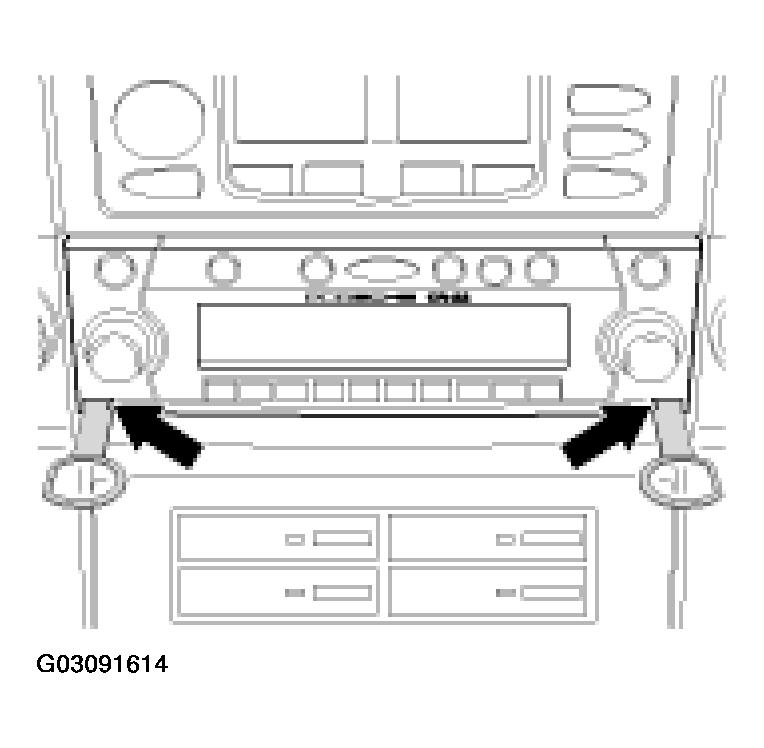

    Fig 1: Removing Car Radio
    G03091614Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Carefully pull the car radio out of the holder using the special tools and disconnect the electrical plug connections.
