Removing radio antenna

  1. Remove the cover over the heating/air-conditioning system, battery and fluid tank.
  2. Disconnect the antenna lead at the separation point. Just loosen the holder on the radio antenna (2 M5 x 12 screws).

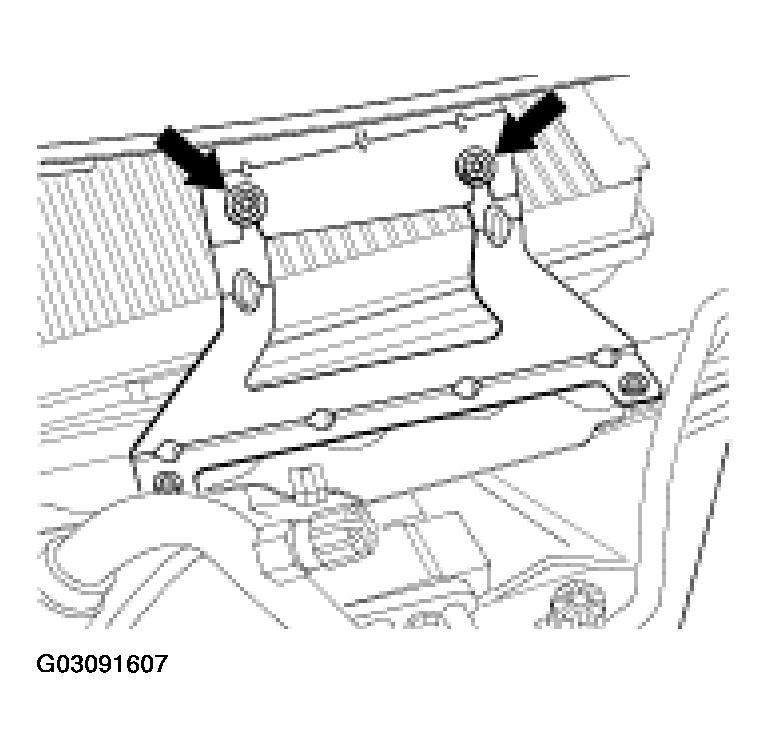

    Fig 1: Loosening The Holder On The Radio Antenna
    G03091607Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Undo the wiper arm on the left and right and remove the cowl panel cover upwards over the wiper link.
  4. Undo the radio antenna under the cowl panel cover and unclip it.
