Removing control module for telephone

  1. Unscrew the 4 fastening screws from the holder.

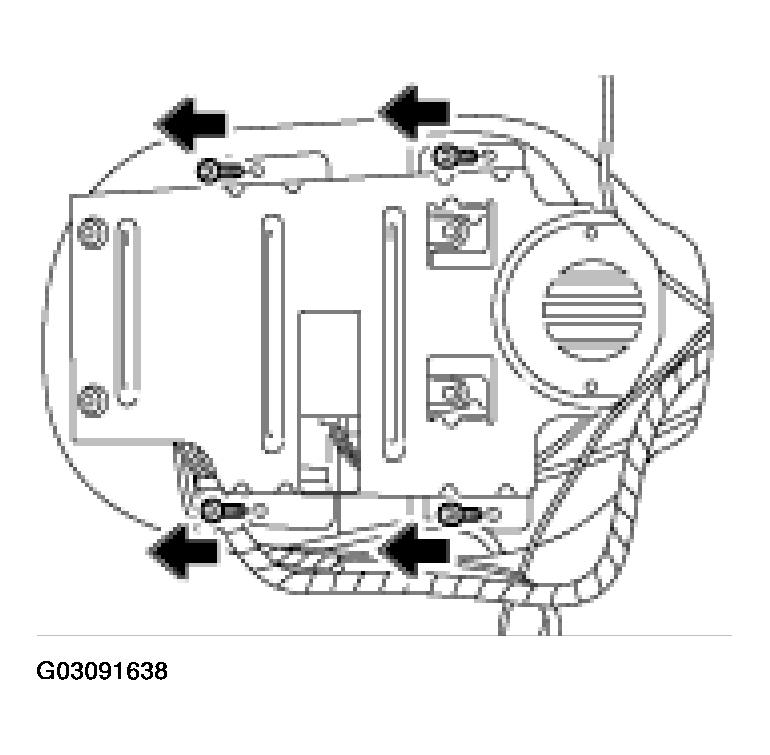

    Fig 1: Removing Fastening Screws From Control Module For Telephone Holder
    G03091638Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Unscrew the 2 fastening screws from the holder and remove the control module from the holder.

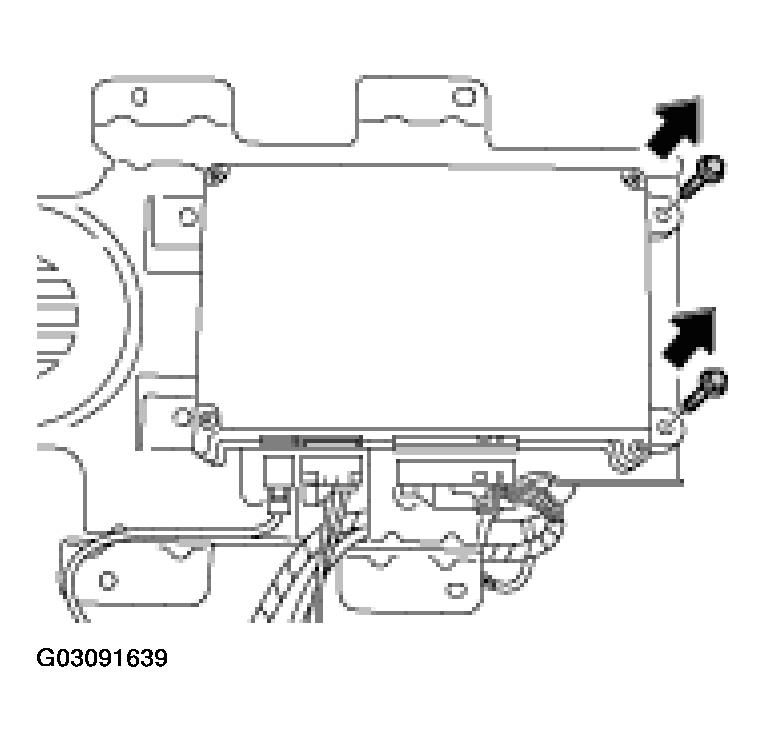

    Fig 2: Removing Control Module For Telephone From Holder
    G03091639Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Disconnect the electrical plug connections.

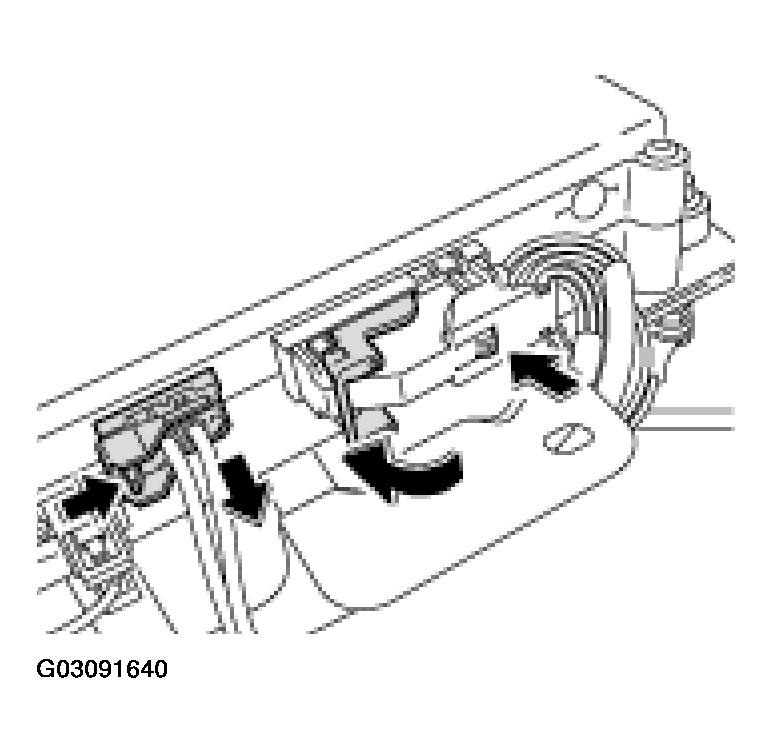

    Fig 3: Disconnecting Electrical Plug Connections From Control Module For Telephone
    G03091640Courtesy of PORSCHE OF NORTH AMERICA, INC.
