Removing control module for parking assistant

  1. Unscrew both fastening screws -arrow-  from the cover.

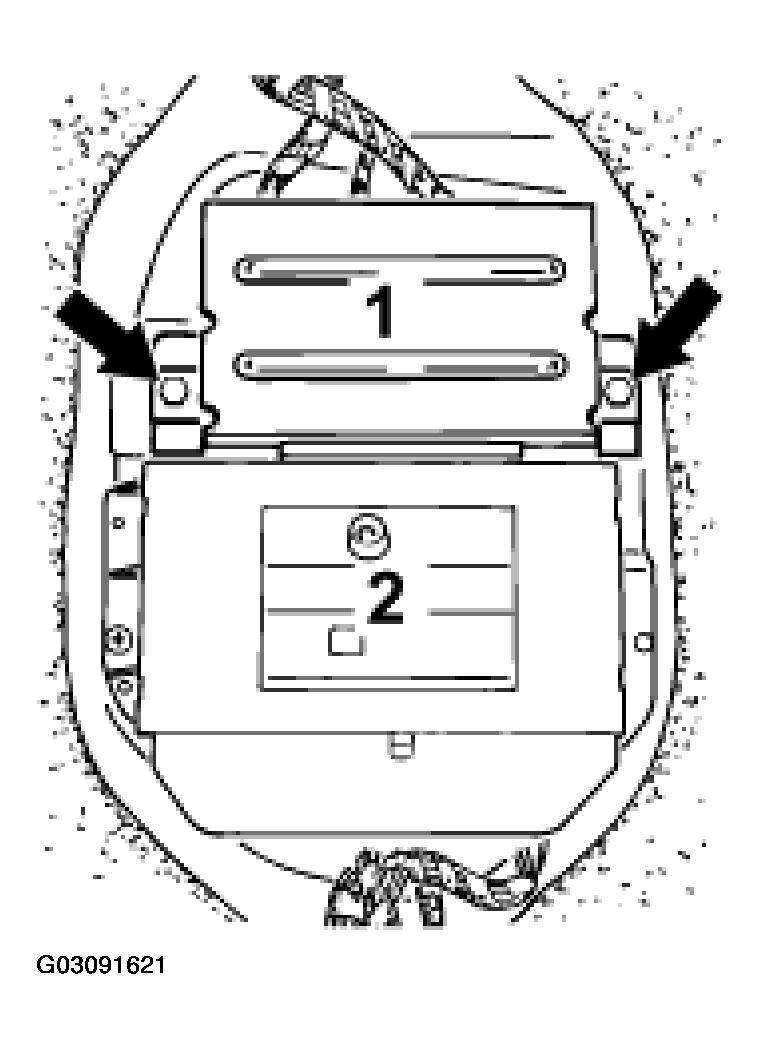

    Fig 1: Removing Both Fastening Screws From Cover - Control Module For Parking Assistant
    G03091621Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Turn the cover over and disconnect both electrical plugs.
    Fig 2: Disconnecting Electrical Plugs From Control Module For Parking Assistant
    G03091622Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Unscrew the control module from the cover with the two fastening screws.
