Removing antenna amplifier

Remove the respective trim of the A-pillar. Refer to REMOVING AND INSTALLING TRIM OF A, B AND C-PILLARS .

Disconnect the antenna plugs for the windscreen -1- and -2- . Refer to Fig 1 .

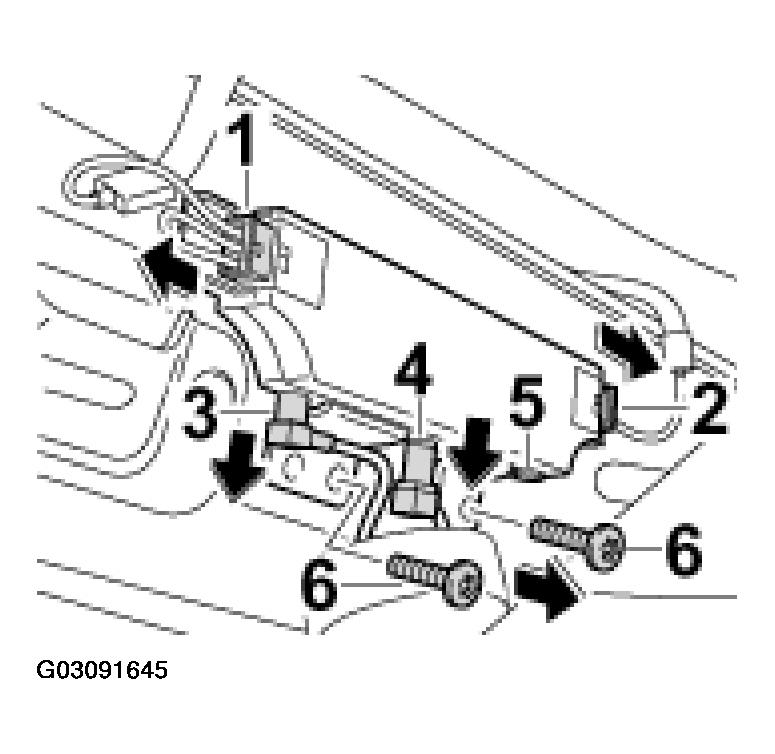

Fig 1: Removing Antenna Amplifier - As Of MY 2003
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disconnect the plug connections for the antenna control module -3, 4- left side, -3, 4, 5- right side. Refer to Fig 1 .
Unscrew the two fastening screws -6- . Refer to Fig 1 .
