Removing signal converter/immobilizer

NOTE: The signal converter on the ignition steering lock housing can be removed through the opening in the dashboard!
  1. Disconnect the battery and cover terminal or battery.
  2. Remove left side nozzle. See REMOVING AND INSTALLING MAIN LIGHT SWITCH .
  3. Open the locking button with a (short) cross-head screwdriver (1/4 turn counter-clockwise).

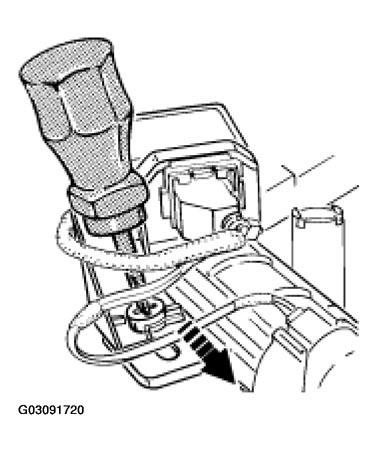

    Fig 1: Opening Locking Button With Cross-Head Screwdriver
    G03091720Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull the signal converter housing out of the holder to the rear.

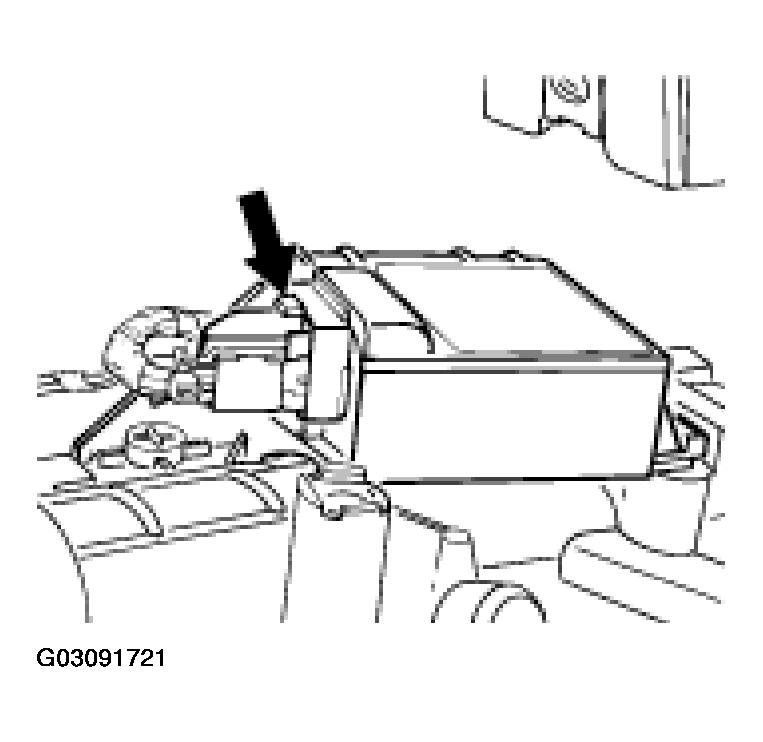

    Fig 2: Removing Signal Converter Housing
    G03091721Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Unlock the electrical plug connection from above and disconnect.
  6. Remove signal converter housing out of the side vent opening.
