Fitting Pistons And Piston Rods In The Crankcase Half Or Bearing Housing Of Cylinder Bank 1 - 3

Fasten crankcase half, cylinders 1 - 3, in conjunction with mounting elements 9590 to engine holder 9589.

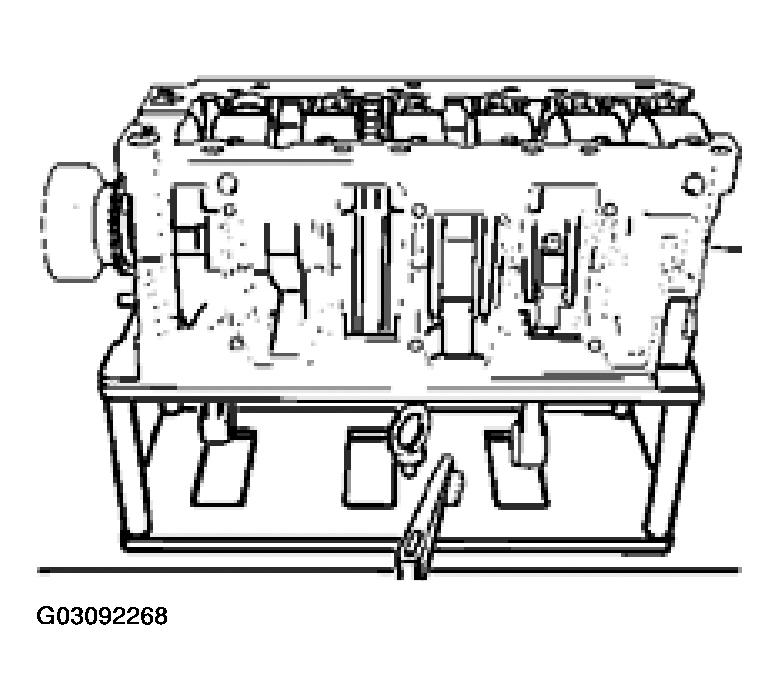

Fig 1: Fastening Crankcase Half To Engine Holder 9589
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Clean bearing housing support surface, particularly in area of oil duct. Check dowel sleeves for correct seating.

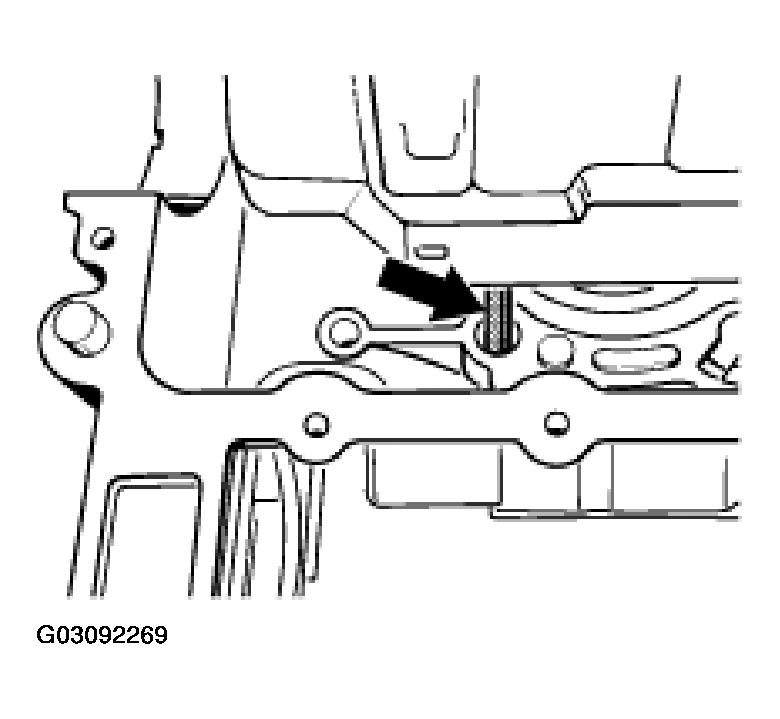

Fig 2: Locating Dowel Sleeves
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installation of the complete bearing housing in the crankcase half, cylinders 1-3. As the bearing housing is heavy, it should be installed using a workshop crane. Carefully and in stages, lower bearing housing with fitted holder 9607 and using a workshop crane towards the dowel sleeves (2 ea.), observing the following points:

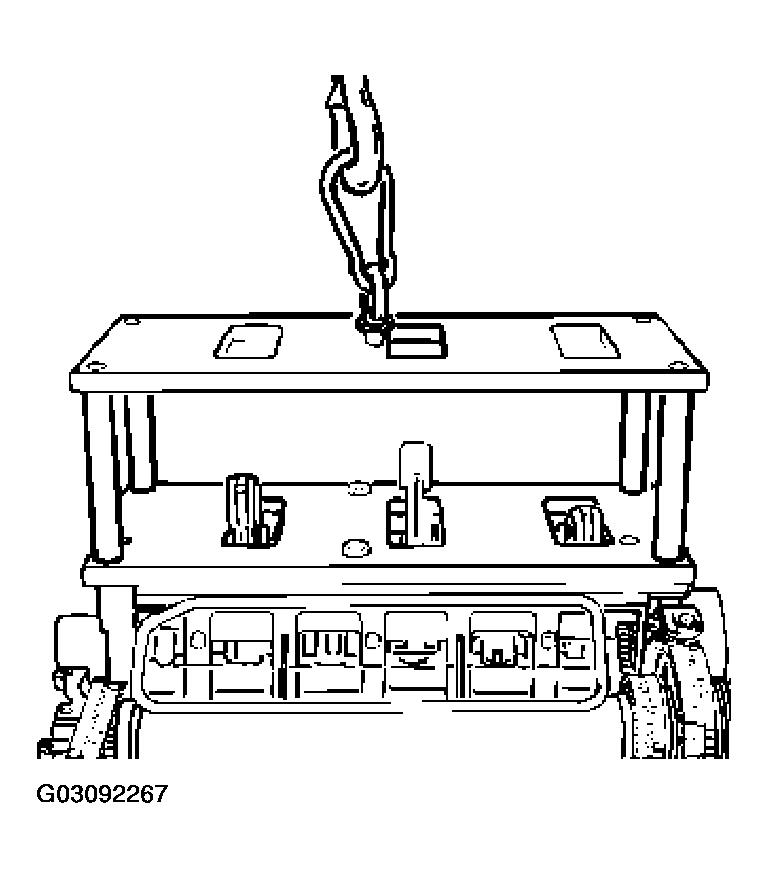

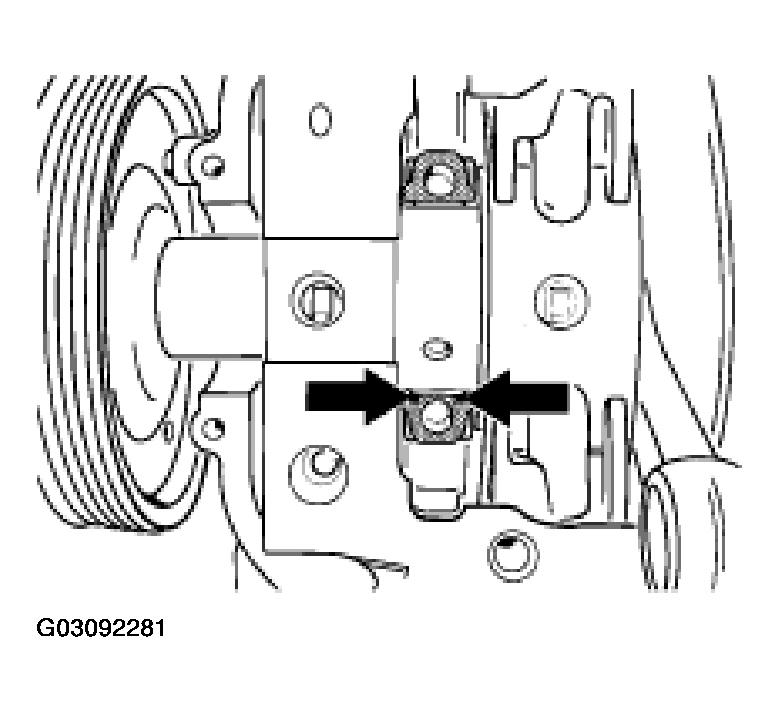

Fig 3: Installing Workshop Crane To Bearing Housing
Courtesy of PORSCHE OF NORTH AMERICA, INC.

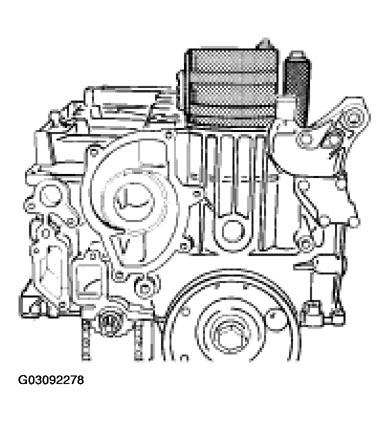

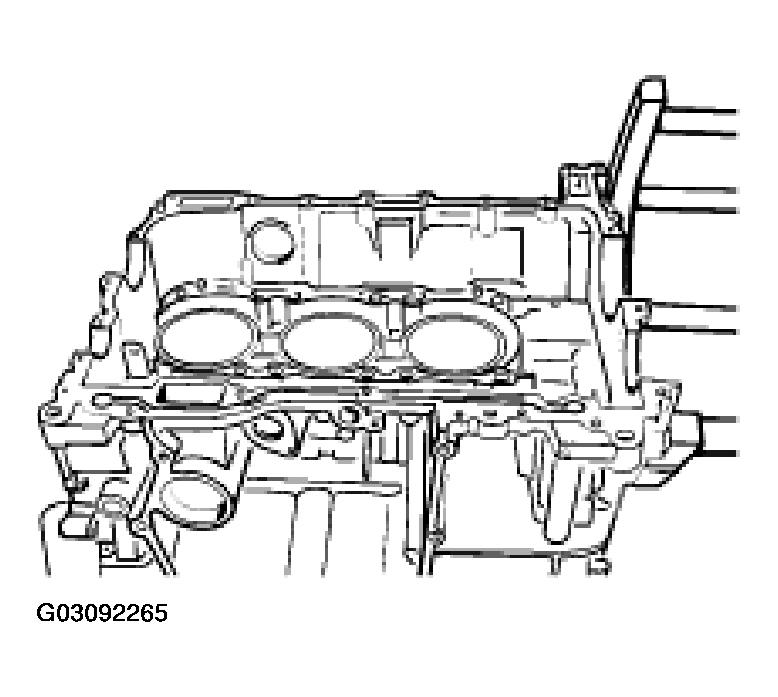

Fig 4: Installing Housing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
1. To aid in guiding, screw two cylinder head screws approx. 3 turns into the bearing housing from below.

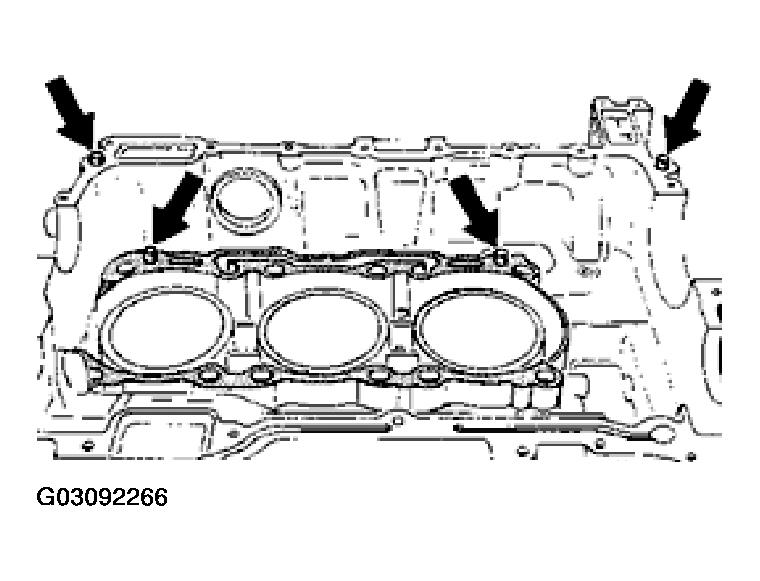

  Fig 5: Screwing Two Cylinder Head Screws Into The Bearing Housing From Below
  Courtesy of PORSCHE OF NORTH AMERICA, INC.

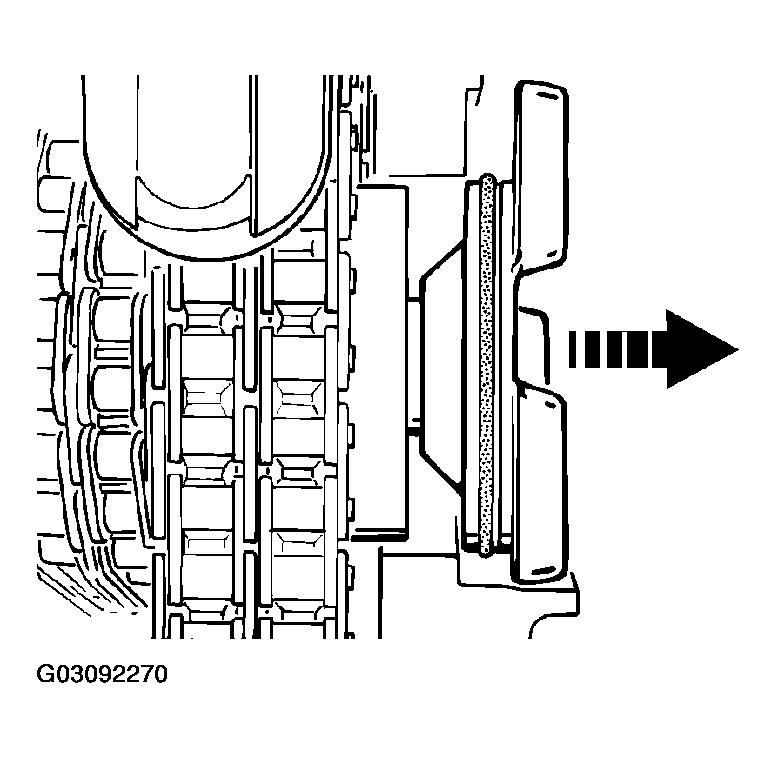

2. Just before reaching the final installation position, pull the loosened intermediate-shaft flange out of the housing area and rotate the flange so that the two flange lugs that are spaced closest together face upwards.

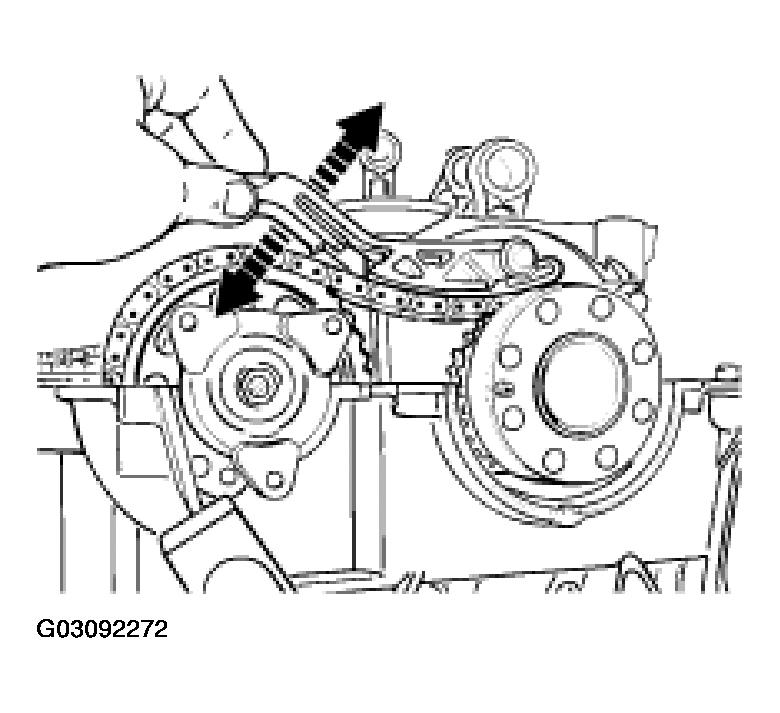

  Fig 6: Pulling Loosened Intermediate-Shaft Flange Out Of The Housing Area
  Courtesy of PORSCHE OF NORTH AMERICA, INC.

  Fig 7: Rotating Flange So That The Two Flange Lugs That Are Spaced Closest Together Face Upwards
  Courtesy of PORSCHE OF NORTH AMERICA, INC.

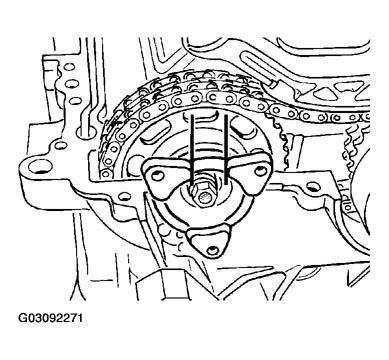

3. After lowering, check whether there is sag in the upper chain area or sufficient lever travel exists. Lift the bearing housing and check the chain installation if necessary.

  Fig 8: Checking Chain Sag
  Courtesy of PORSCHE OF NORTH AMERICA, INC.
4. Remove two cylinder head screws (guidance aid).
For the following assembly procedure - piston installation, cylinders 1, 2 and 3 - the crankcase half and bearing housing unit must be held by at least two screw connections. For this purpose, fasten two original cylinder head screws and plastic spacer sleeves, special tool 9613, from below. Tightening torque 30 Nm (22 ft.lb). Use Torx screwdriver insert T50 or T55.

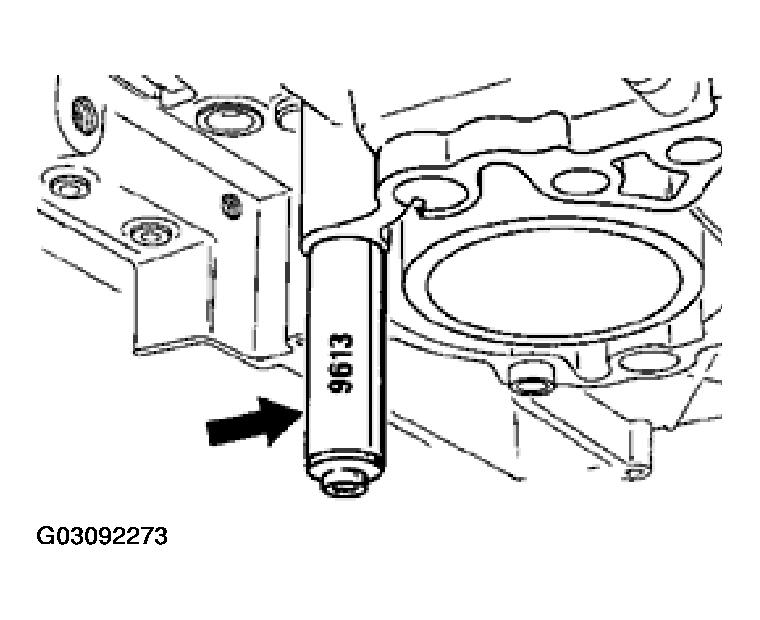

Fig 9: Installing Special Tool 9613
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Turn crankcase by 180° on the assembly support. Cylinders 1, 2 and 3 face upwards.
Fit belt pulley. Screw in fastening screw by hand.

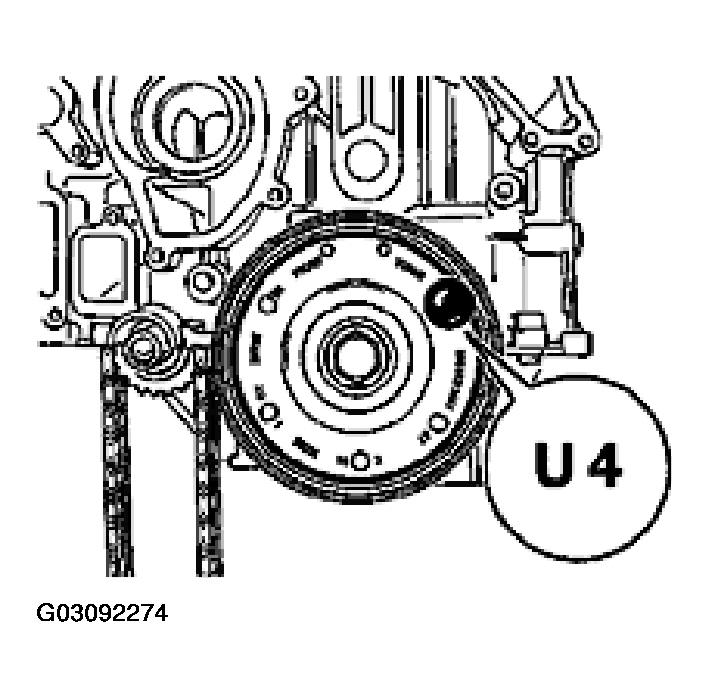

Turn crankshaft clockwise until the bore U4 on the belt pulley is aligned with the fixing bore on the crankcase. Position or fix with fixing pin (short) of special tool 9595.

Fig 10: Aligning Bore U4 On The Belt Pulley with The Fixing Bore On The Crankcase
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove preassembled connecting rod with piston of cylinder 1 from the assembly fixture.

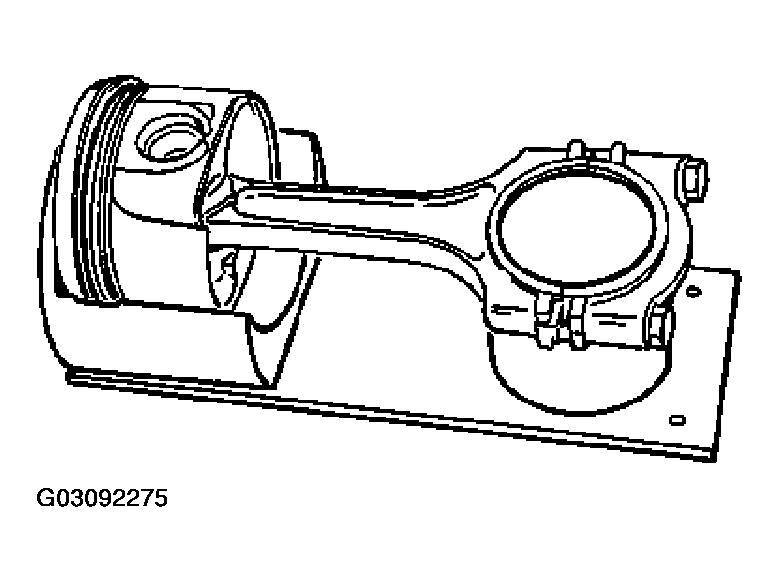

Fig 11: Removing Connecting Rod With Piston From Assembly Fixture
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Align the gaps of the upper piston rings offset by 180°.

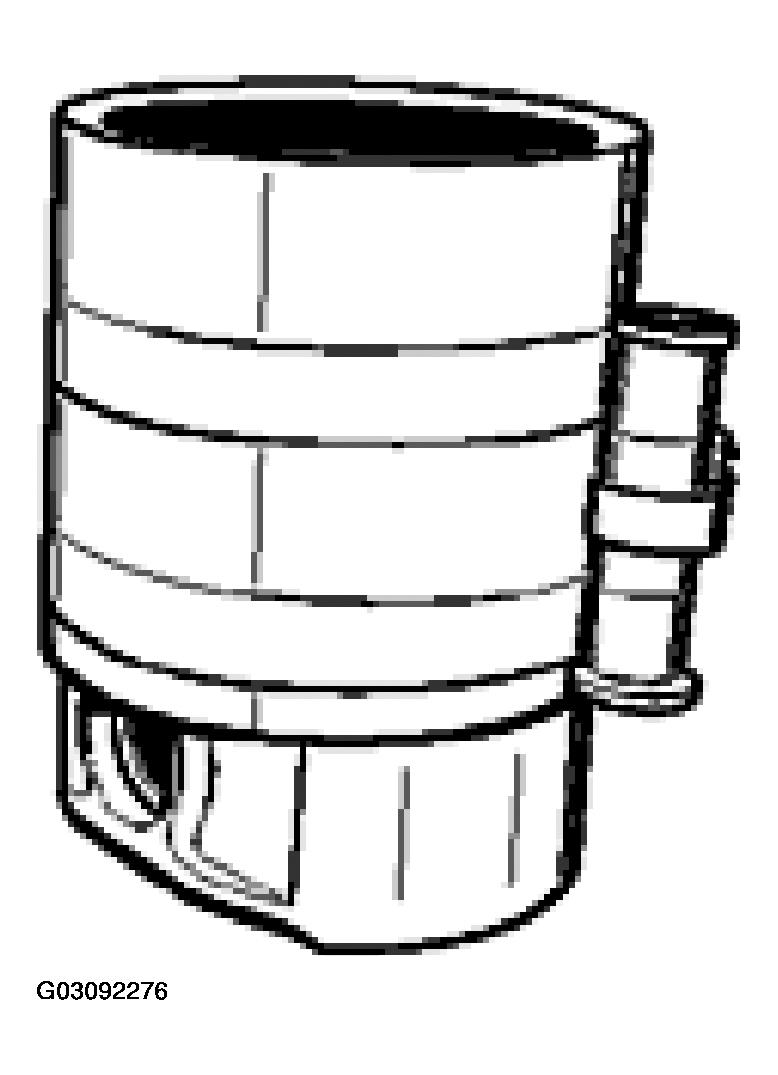

Tighten piston ring clamp and fit piston in the cylinder bore with connecting rod.

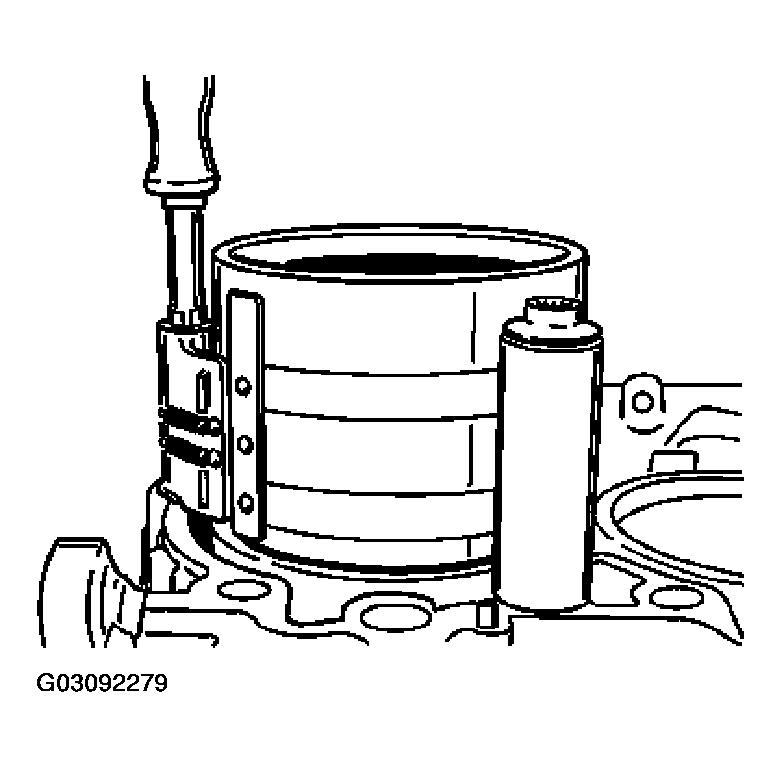

Fig 12: Identifying Piston Ring Compressor
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Place piston with connecting rod in installation position.

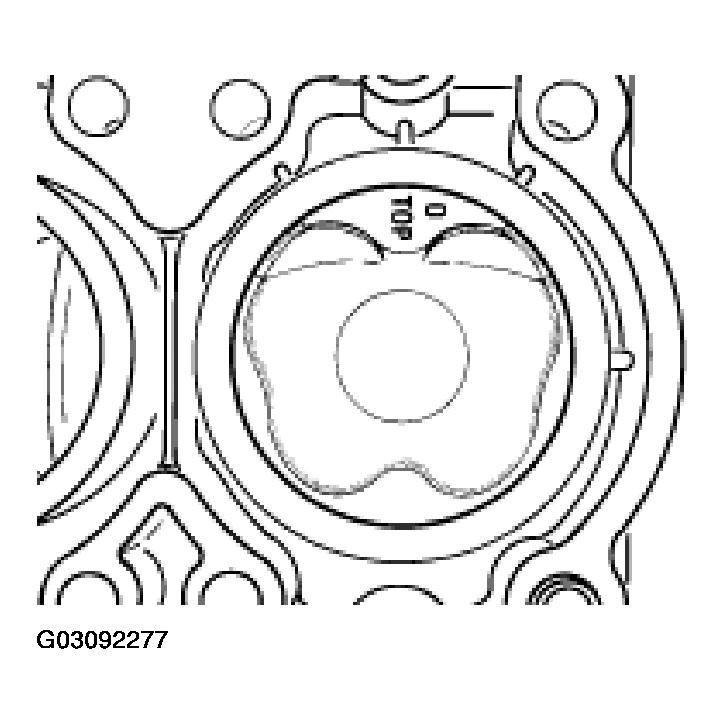

Fig 13: Identifying Piston Installation Position
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- Generously coat the piston and restraining strap with engine oil before fitting the piston.
Fig 14: Installing Piston
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 15: Compressing Piston Rings
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Use the handle of a hammer to tap the piston into the cylinder while firmly pressing on the edge of the restraining strap. Use protective gloves.
NOTE:
- The piston must be fitted in the cylinder carefully and with feeling. If the resistance increases, immediately interrupt the assembly process. Reposition the piston ring restraining strap and repeat the assembly operation.
Centre the piston in the cylinder bore and carefully push it down with the assembly aid (special tool 9598).

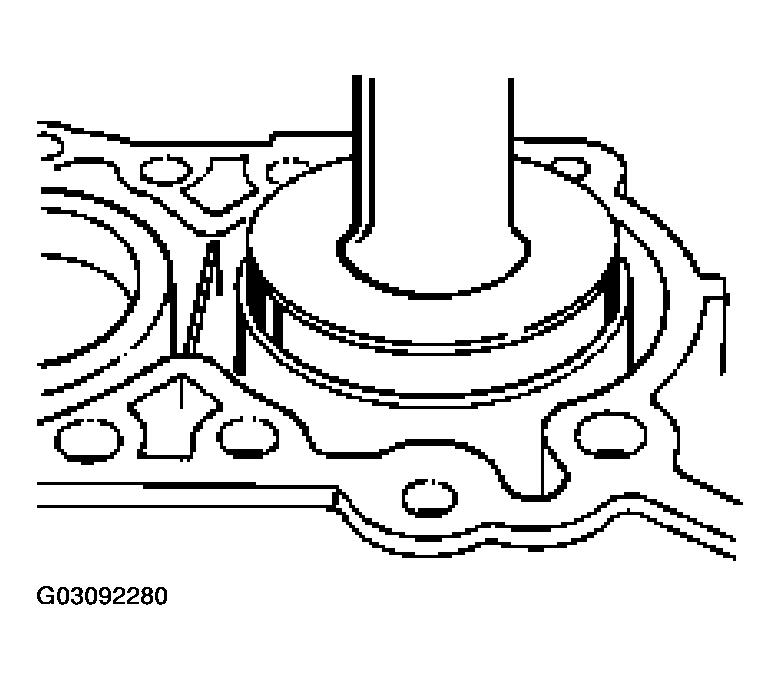

Fig 16: Installing Special Tool (9598) Onto Piston
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Turn crankcase by 180°. Make sure the bearing shell is correctly seated in the connecting rod. The fixing lugs point to the oil pan.

Fig 17: Locating Connecting Rod Bearing Shell
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fit end caps. Lubricate bearing shells. The recesses of the connecting-rod bearing twist lock must face each other.

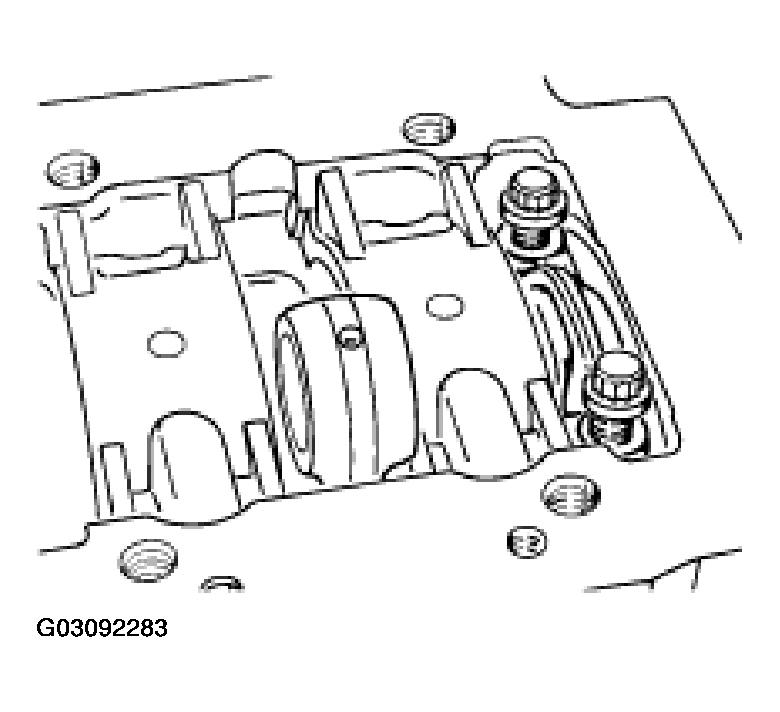

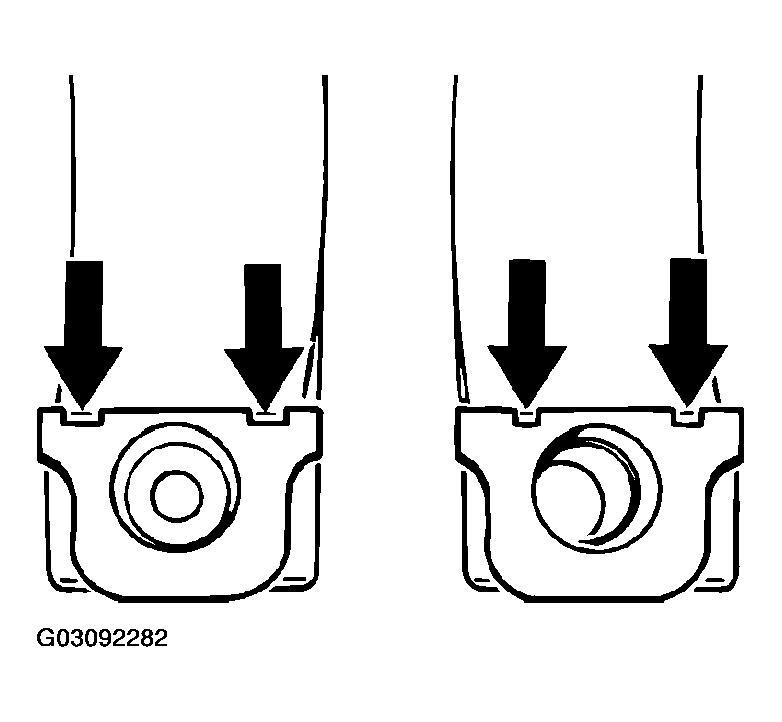

Fig 18: Locating Connecting-Rod Bearing Twist Lock
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 19: Identifying Connecting-Rod Cap Bolts
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tightening specification:
Oil thread and contact surface.
1. Initial tightening 20 Nm (15 ft.lb.)
  To facilitate subsequent checks it is recommended that the screw heads be marked with a colored pen after initial tightening.
2. Final tightening 1 x 90° turn
  Use 10 mm socket wrench insert (double hexagon).

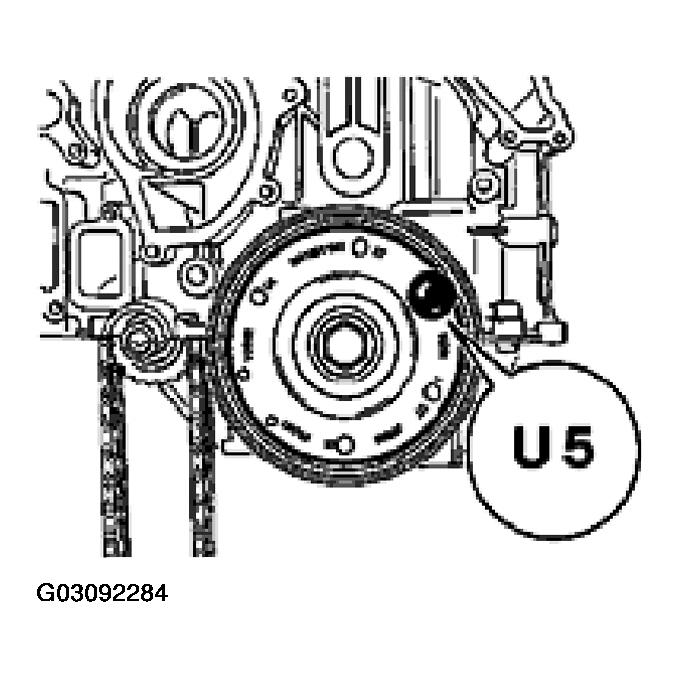

Fitting piston and connecting rod in cylinder 2 Turn crankcase by 180°. Turn crankshaft clockwise until the bore U5 on the belt pulley is aligned with the fixing bore on the crankcase. Position or fix with fixing pin (short) of special tool 9595.

Fig 20: Aligning Bore U5 On The Belt Pulley With The Fixing Bore On The Crankcase
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Prepare preassembled connecting rod with piston of cylinder 2 for installation. Perform the following assembly steps as described from Steps 8 to 16.
Fitting piston and connecting rod in cylinder 3 Rotate crankshaft clockwise until bore U6 on the belt pulley is aligned with the fixing bore on the crankcase. Position or fix with fixing pin (short) of special tool 9595.

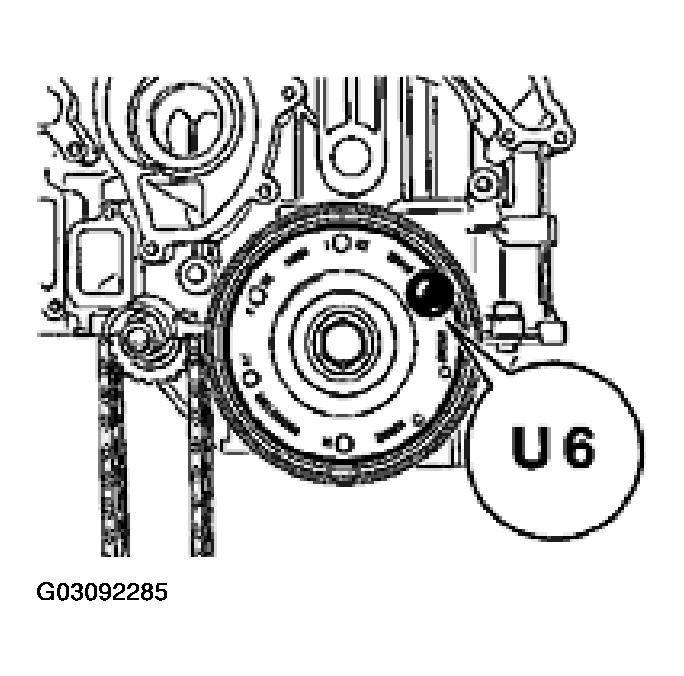

Fig 21: Aligning Bore U6 On The Belt Pulley With The Fixing Bore On The Crankcase
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Prepare preassembled connecting rod with piston of cylinder 3 for installation. Perform the following assembly steps as described from Steps 8 to 16.
NOTE:
- Leave crankshaft at position U6 after fitting the piston and connecting rod in cylinder 3. This position is necessary for subsequent fitting of the piston of cylinder 6.
Remove belt pulley.
