Removing And Installing Camshafts - As Of My 2003
>>
Allocating The Camshafts M 96/23 (2.7L)
>>
Camshafts Of Cylinder Bank 4 - 6
Camshafts Of Cylinder Bank 4 - 6
Designation on the camshafts 4 - 6:

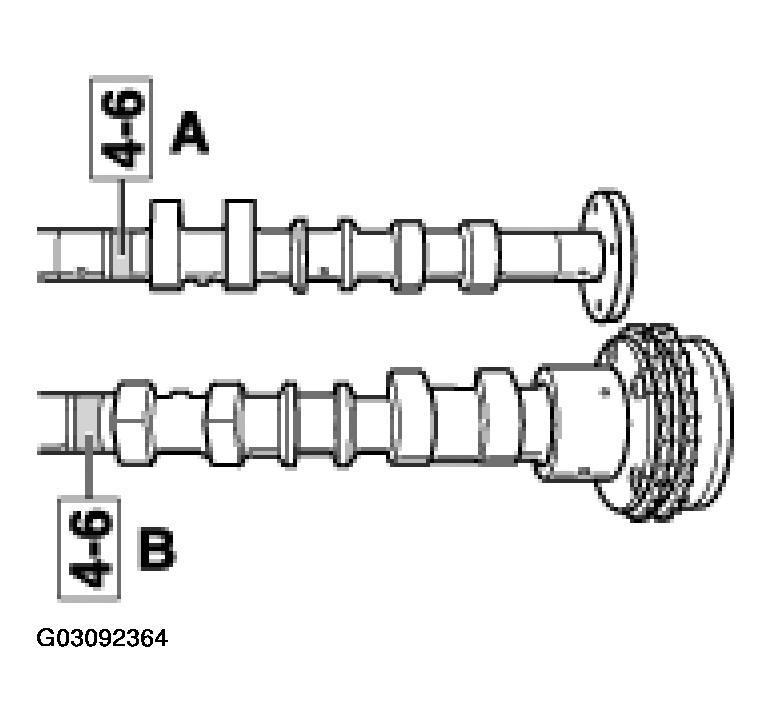

Fig 1: Identifying Camshafts M 96/23 (2.7L) (Cylinder Bank 4-6)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
A: Exhaust camshaft: 218.10/2.7 EX 4 - 6
B: Inlet camshaft: 216.10/2.7 IN 4 - 6
