Welding in wheel housings and side members
WHEEL HOUSINGS AND SIDE MEMBERS REFERENCE (WELDING)
| No. | Procedure | Instructions |
|---|---|---|

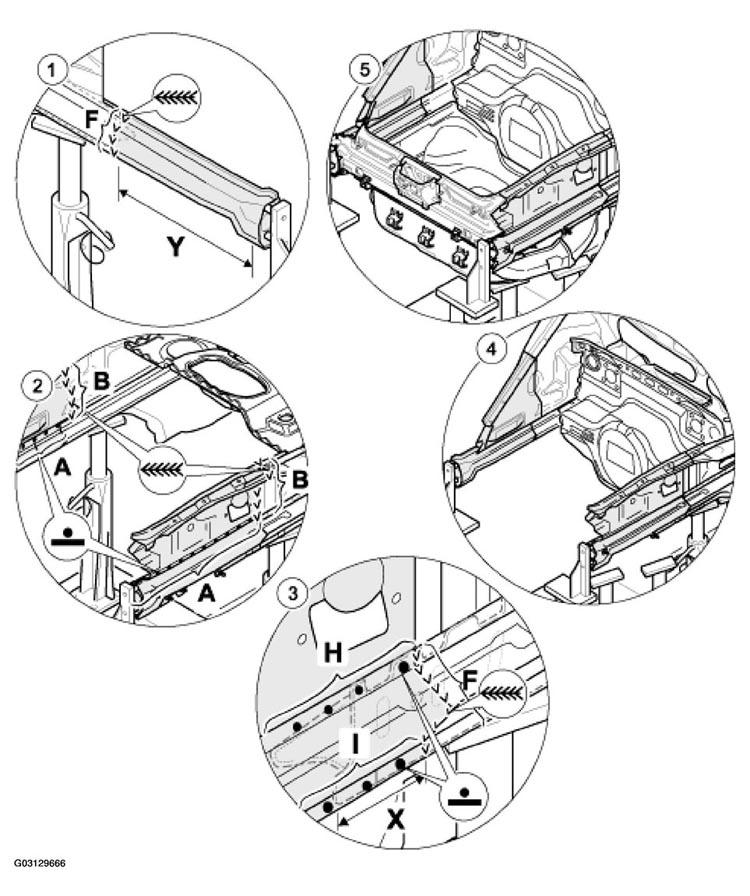

| 1 | Welding in the inner side member. | Weld the inner side member with a full butt weld -F- . See Fig 1 . |
| 2 | Welding in wheel housings. | Spot-weld wheel housings and inner side members -A-B- . See Fig 1 . |
| 3 | Welding in the outer side member. | Spot-weld the outer side member to the inner side member -H, I-F- . See Fig 1 . |
| 4 | Welding in front wall | See WELDING IN FRONT WALL |
| 5 | Welding in closing panel and front floor panel | See REPLACING CLOSING PANEL |
