Preparing wheel housings and side members for installing and fitting
WHEEL HOUSINGS AND SIDE MEMBERS REFERENCE (PREPARING)
| No. | Procedure | Instructions |
|---|---|---|

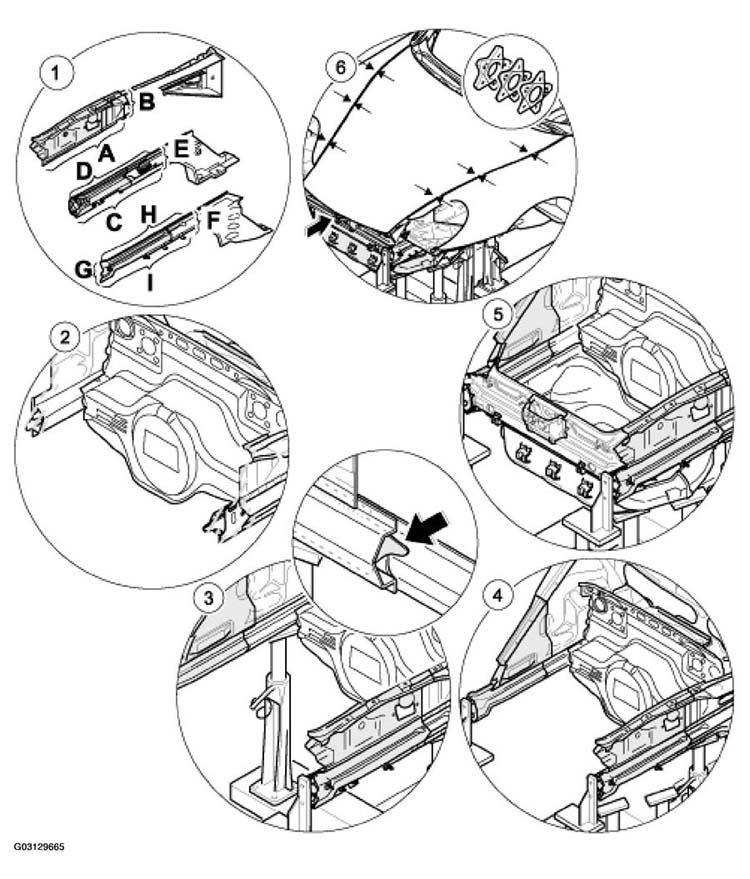

| 1 | Preparing spare parts | Transfer cut to the spare front wheel housings and then cut to size, -dimension X = 50 mm-A, B, C, D, E, F, G, H, I,-
. See Fig 1
. Cut the spare side members to size with the body saw and then fit so that there is an offset of -dimension X = 50 mm-A, B, C, D, E, F, G, H, I,- . See Fig 1 . |
| 2 | Cleaning the welding areas | Remove underbody coating and paint layers, etc. from the welding areas of the body with a hot-air gun or rotary brush. |
| 3 | Fitting the side members and wheel housing in the body and fastening them on the straightening attachments. | Fasten the spare inner side member on the straightening attachment for the front-axle mount or on the straightening attachments for the impact pipes (impact absorbers) and fit it in. |
| 4 | Fitting the front floor panel in the body and fastening it on the straightening attachment. | See REPLACING CLOSING PANEL |
| 5 | Fitting in front wall | See REPLACING FRONT WALL |
| 6 | Fitting in wings and front lid | Fit the left and right wings and fit in the front lid. Refer to GAP DIMENSIONS, BODY . |
