Removing convertible top
NOTE:
The cabriolet convertible top must be unlocked and the convertible-top compartment lid must be raised to its top position!
REMOVING CONVERTIBLE TOP INSTRUCTIONS (STEPS 1-4)
| No. | Procedure | Instructions |
|---|---|---|

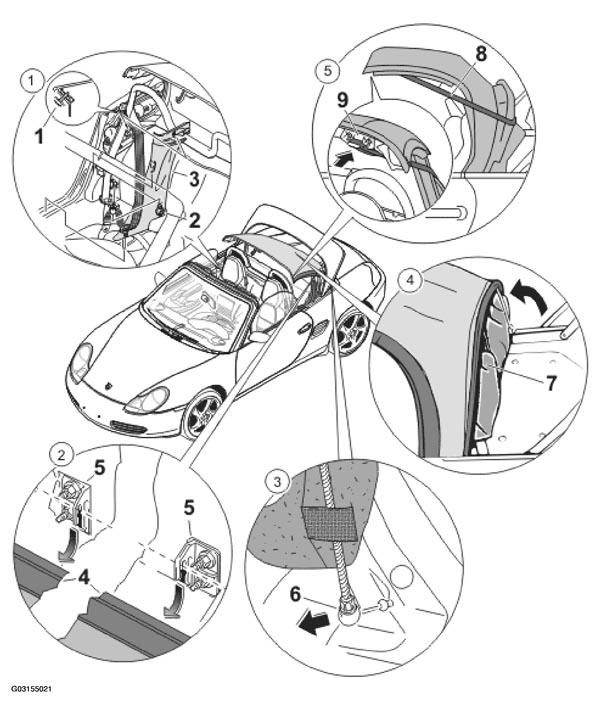

| 1 | Removing side-panel linings | Unscrew the top fastening screw -1-2-3- . See Fig 1 . |
| 2 | Detaching cloth covering | Disengage the strip -4-5- . See Fig 1 . |
| 3 | Detaching tension cable | Press the ball socket of the tension cable -6- . See Fig 1 . |
| 4 | Convertible top in service position up to model year 2002 | Press tension bow -7- . See Fig 1 . |
WARNING:
Damage to the convertible-top frame and rear glass window!
- The convertible top must not be moved forwards by the electric motor in service position!
REMOVING CONVERTIBLE TOP INSTRUCTIONS (STEP 5)
| No. | Procedure | Instructions |
|---|---|---|
| 5 | Convertible top in service position as of model year 2003 | Observe warning note. -8-9-
. See Fig 1
. Open convertible top approx. 40 cm from windscreen frame. Detach the Velcro-fastening of the holding strap -8-9- . See Fig 1 . |
NOTE:
- After replacing the convertible-top or detaching the push bars and operating the convertible top, it is essential to carry out basic adjustment of the convertible-top gears to ensure it closes correctly. See ADJUSTING CONVERTIBLE TOP GEAR .
REMOVING CONVERTIBLE TOP INSTRUCTIONS (STEPS 6-9)
| No. | Procedure | Instructions |
|---|---|---|

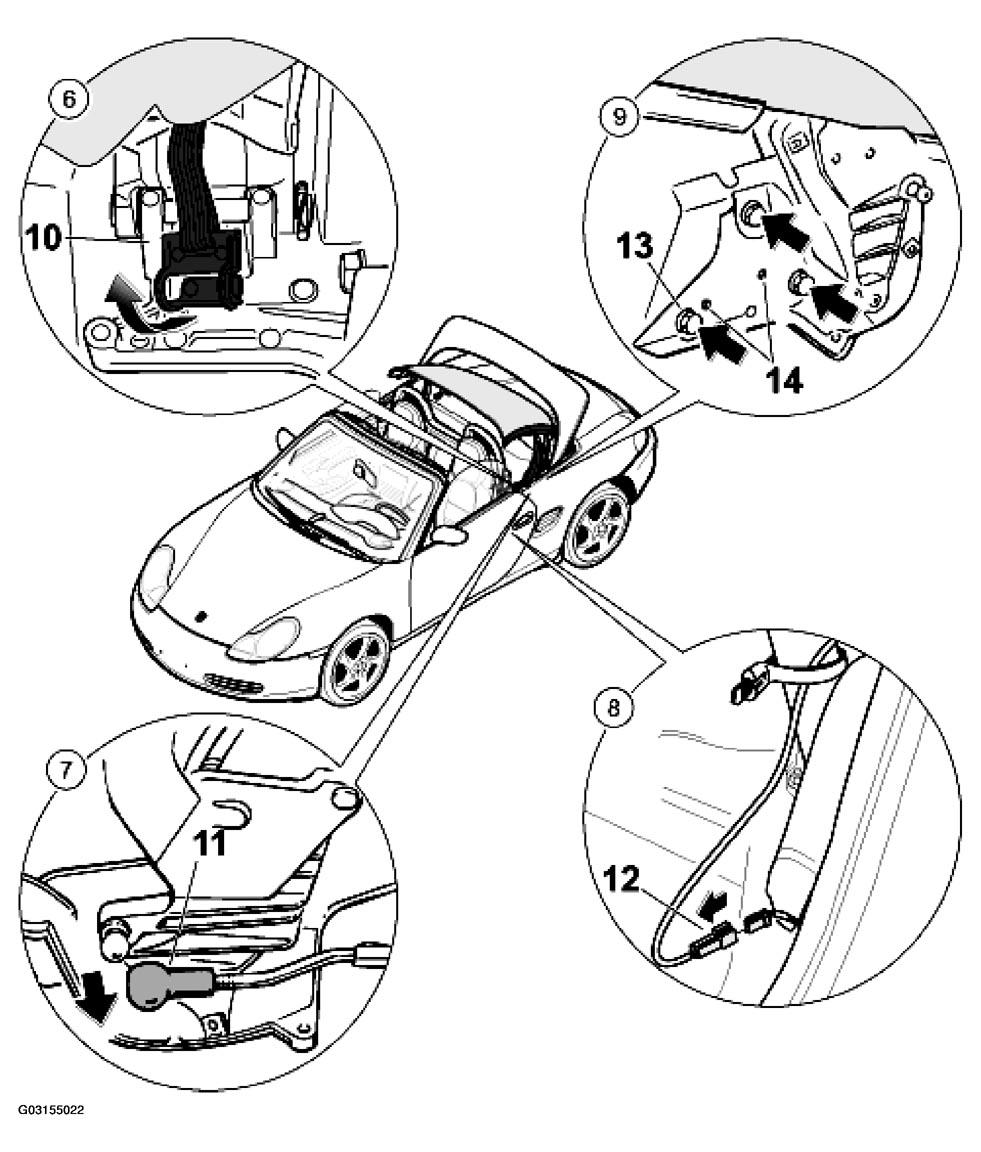

| 6 | Detaching restraining straps | On the cloth covering, disengage the left and right restraining straps -10- . See Fig 2 . |
| 7 | Detaching push bar | At the main bow, press out the ball socket of the push bar -11- . See Fig 2 . |
| 8 | Disconnecting microswitches | Disconnect the electrical plug connection at the microswitch -12-03.05.1999- . See Fig 2 . |
| 9 | Detaching convertible-top support | Unscrew fastening screws -13-14- . See Fig 2 . |
