8008 External Harman amplifier
>>
No load on right subwoofer
>>
Affected pin
Affected pin
External Harman amplifier, plug A, pin 1, pin 2, pin 8, pin 14, pin 17

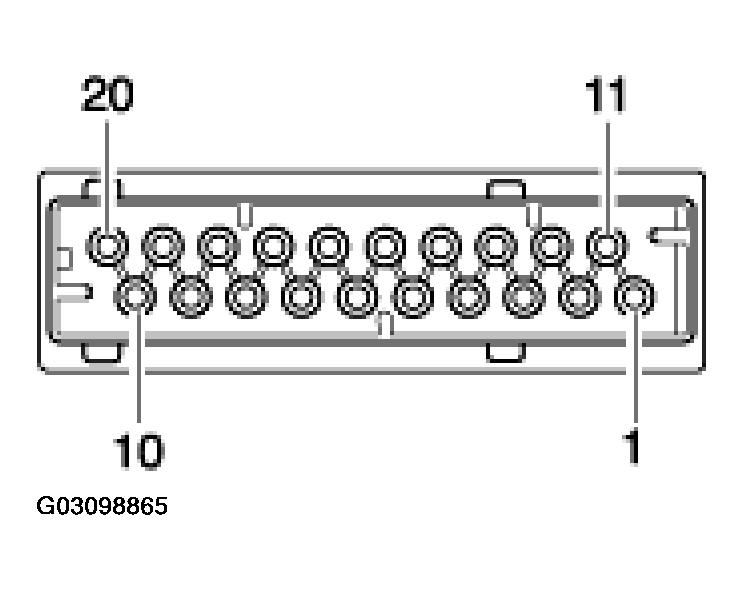

Fig 1: Identifying Pins Of 8008 External Harman Amplifier Connector
Courtesy of PORSCHE OF NORTH AMERICA, INC.
