8007 External Harman amplifier
>>
No load on left subwoofer
>>
Affected pin
Affected pin
External Harman amplifier, plug A, pin 1, pin 2, pin 7, pin 14, pin 16.

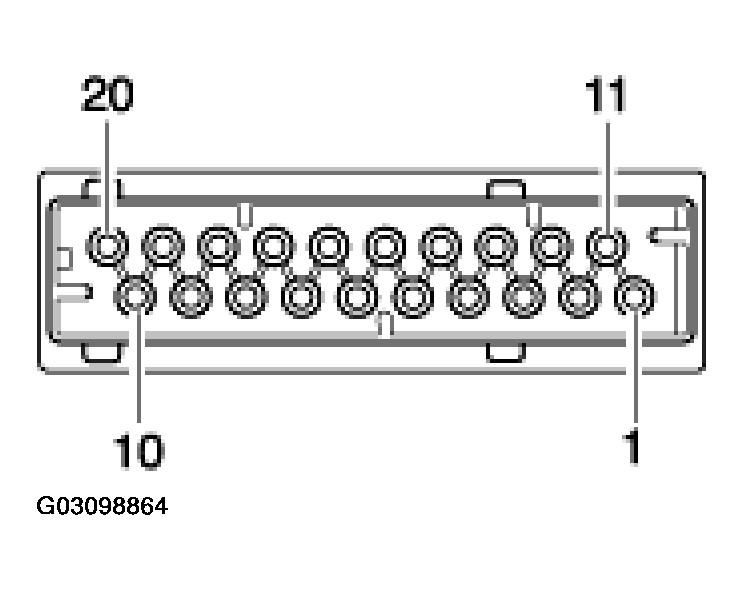

Fig 1: Identifying Pins Of 8007 External Harman Amplifier Connector
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
