8006 External Harman amplifier
>>
Fault in right subwoofer channel
>>
Affected pin
Affected pin
External Harman amplifier, plug A, pins 8 and 17

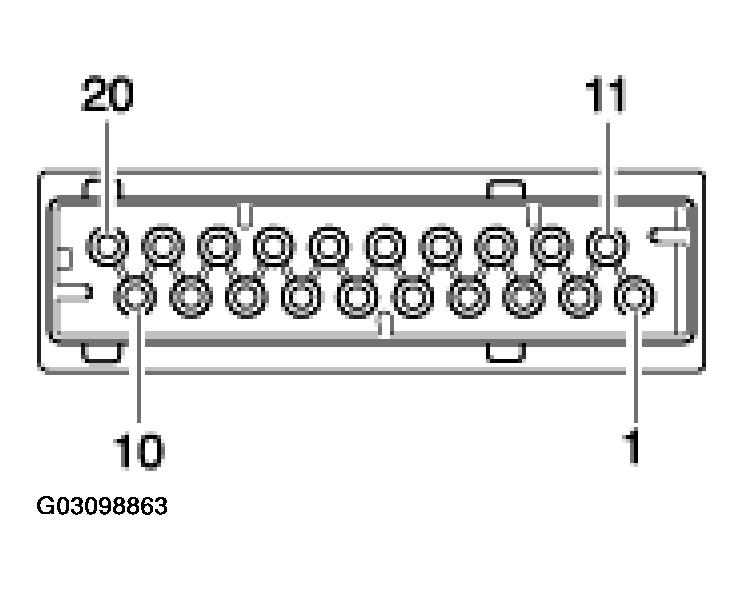

Fig 1: Identifying Pins Of 8006 External Harman Amplifier Connector
Courtesy of PORSCHE OF NORTH AMERICA, INC.
