8005 External Harman amplifier
>>
Fault in left subwoofer channel
>>
Affected pin
Affected pin
External Harman amplifier, plug A, pins 7 and 16

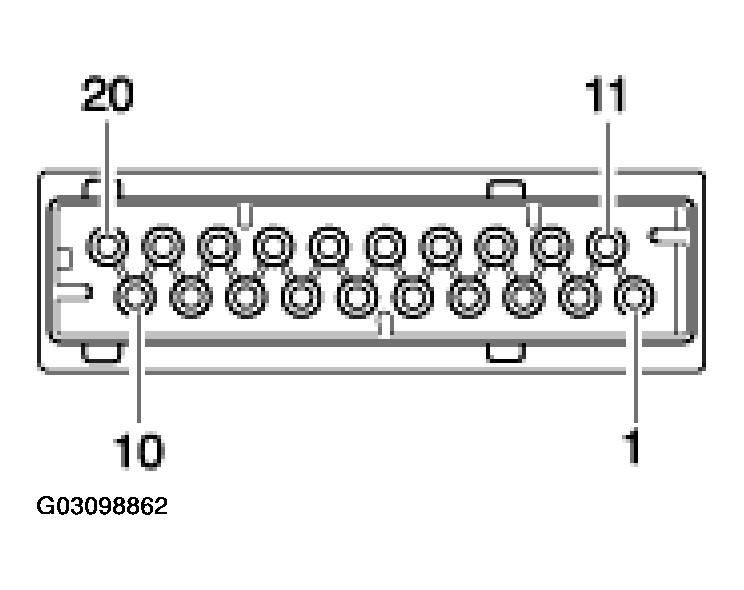

Fig 1: Identifying Pins Of 8005 External Harman Amplifier Connector
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
