8004 External BOSE amplifier
>>
Fault in front right/rear left and right loudspeaker channel
>>
Affected pin
Affected pin
External BOSE amplifier, plug A, pin 23, pin 24, pin 26, pin 28

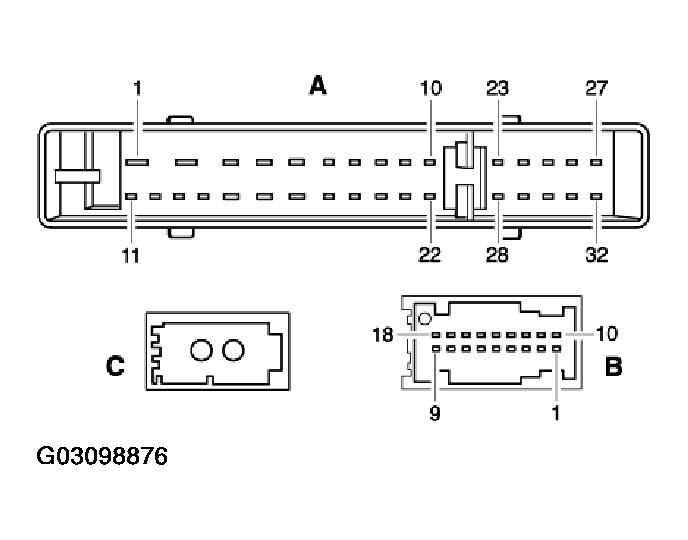

Fig 1: Identifying Pins Of 8004 External BOSE Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.
