8003 External BOSE amplifier
>>
Fault in front left loudspeaker channel/left door speaker
>>
Affected pin
Affected pin
External BOSE amplifier, plug A, pin 24, pin 29, pin 25, pin 38

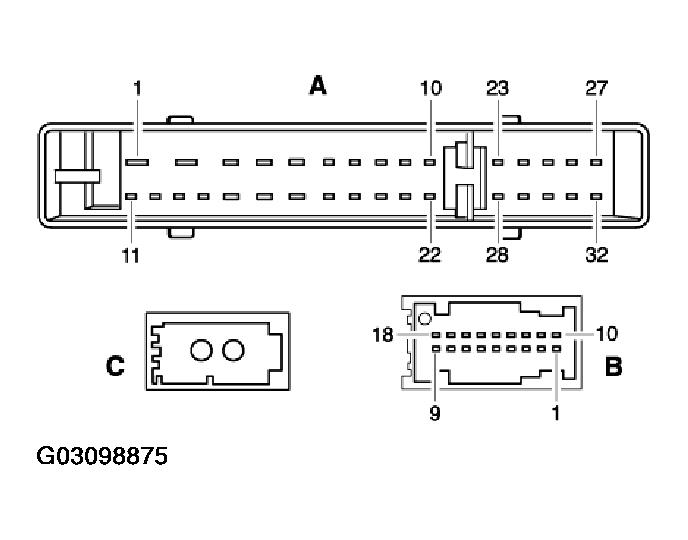

Fig 1: Identifying Pins Of 8003 External BOSE Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.
