Installing covering for backrest centre strip
INSTALLING PROCEDURE FOR COVERING FOR BACKREST CENTRE STRIP
| No. | Procedure | Instructions |
|---|---|---|

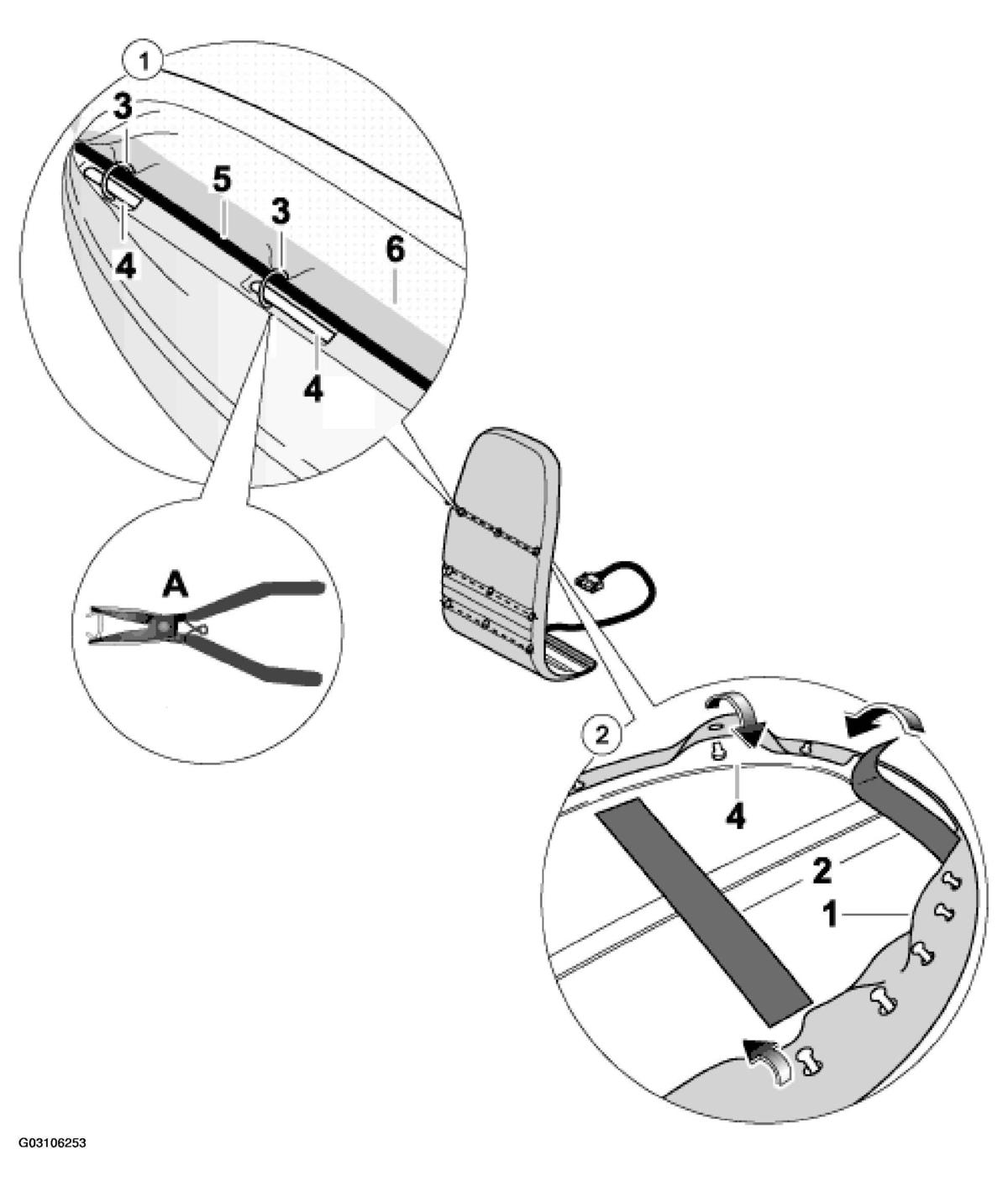

| 1 | Placing the cushion clips | Position backrest centre strip -6-4-5-4-A-3- . See Fig 1 . |
| 2 | Engaging the backrest centre strip | Attach the covering for the backrest centre strip -1-4-4-2- . See Fig 1 . |
| Installing the backrest centre strip | See INSTALLING THE BACKREST CENTRE STRIP . |
