Installing cover for the seat cushion

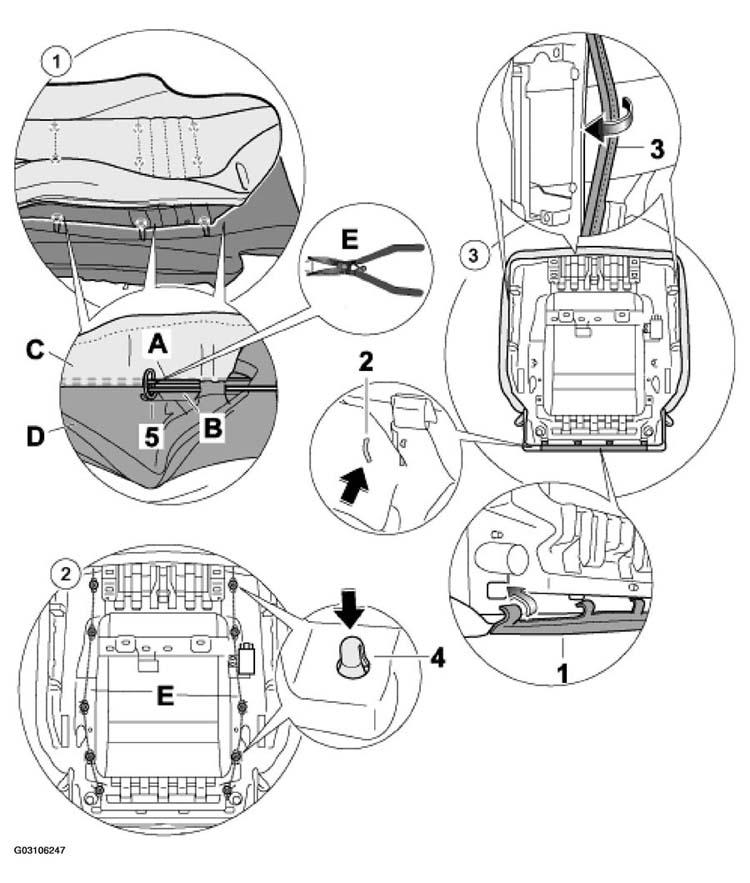

Fig 1: Installing Cover For Seat Cushion

G03106247

Courtesy of PORSCHE OF NORTH AMERICA, INC.

INSTALLING PROCEDURE FOR COVER FOR SEAT CUSHION (1 OF 2)

No.	Procedure	Instructions
1	Mounting the seat cover on to the foam part (seat cushion)	Position seat cover covering strips -C-A-D-E-B-A- part (seat cushion). See Fig 1 .
2	Mounting the seat cover on to the cushion carrier	NOTE: -4-4-E- . See Fig 1 . The plastic clips -4-4-E- . See Fig 1 .
3	Fitting seat cover onto the cushion carrier	Fit the seat cover over the foam part so that it is free from wrinkles. Push the push-on bead -3-1-2- . See Fig 1 .
	Installing cushion carrier	See INSTALLING FRONT CUSHION CARRIER .

CAUTION:

Danger of material damage if excessive heat is applied!
If creases form, only short partial warming with the hot-air gun is permissible. Always observe the hot-air temperature of approx. 50 degrees Celsius (122 Fahrenheit).

INSTALLING PROCEDURE FOR COVER FOR SEAT CUSHION (2 OF 2)

No.	Procedure	Instructions
	Remedying creases in the backrest cover	If creases form in the areas of the backrest cover, heat them partially with the hot-air gun.
