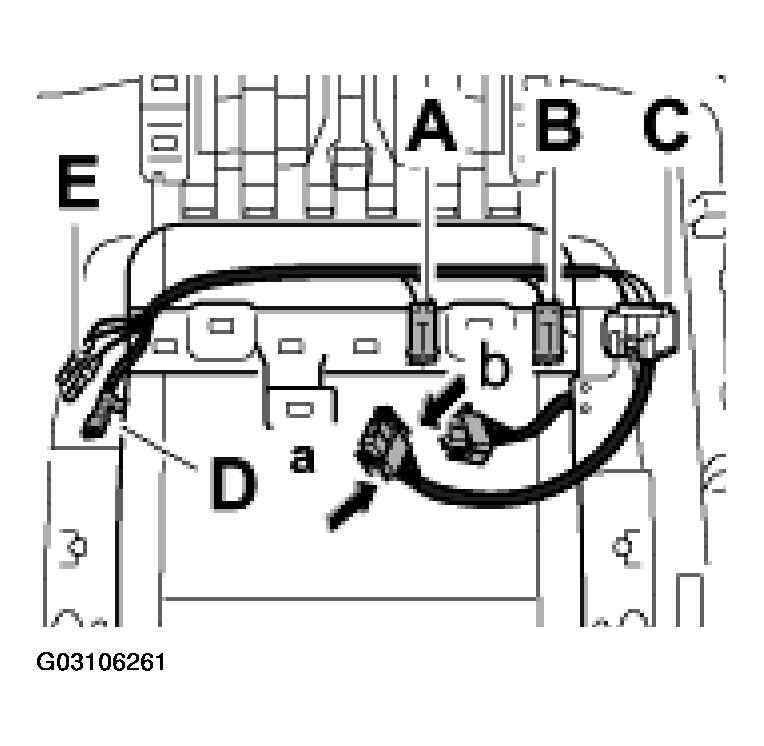

Seat heating line route
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- -A-
in Fig 1
. Plug connection for backrest heating element.
- -a-
in Fig 1
. Press plug for backrest heating element together -arrow-
and pull from the plug connection -A-
. See Fig 1
.
- -B-
in Fig 1
. Plug connection for seat heating element.
- -b-
in Fig 1
. Push plug for seat heating element onto -B-
until the plug connection engages. See Fig 1
.
- -C-
in Fig 1
. Base for seat heating control module.
- -D-
in Fig 1
. Connection for seat heating wiring harness for the central plug.
- -E-
in Fig 1
. Power supply, plug for central plug.
