Installing the backrest centre strip

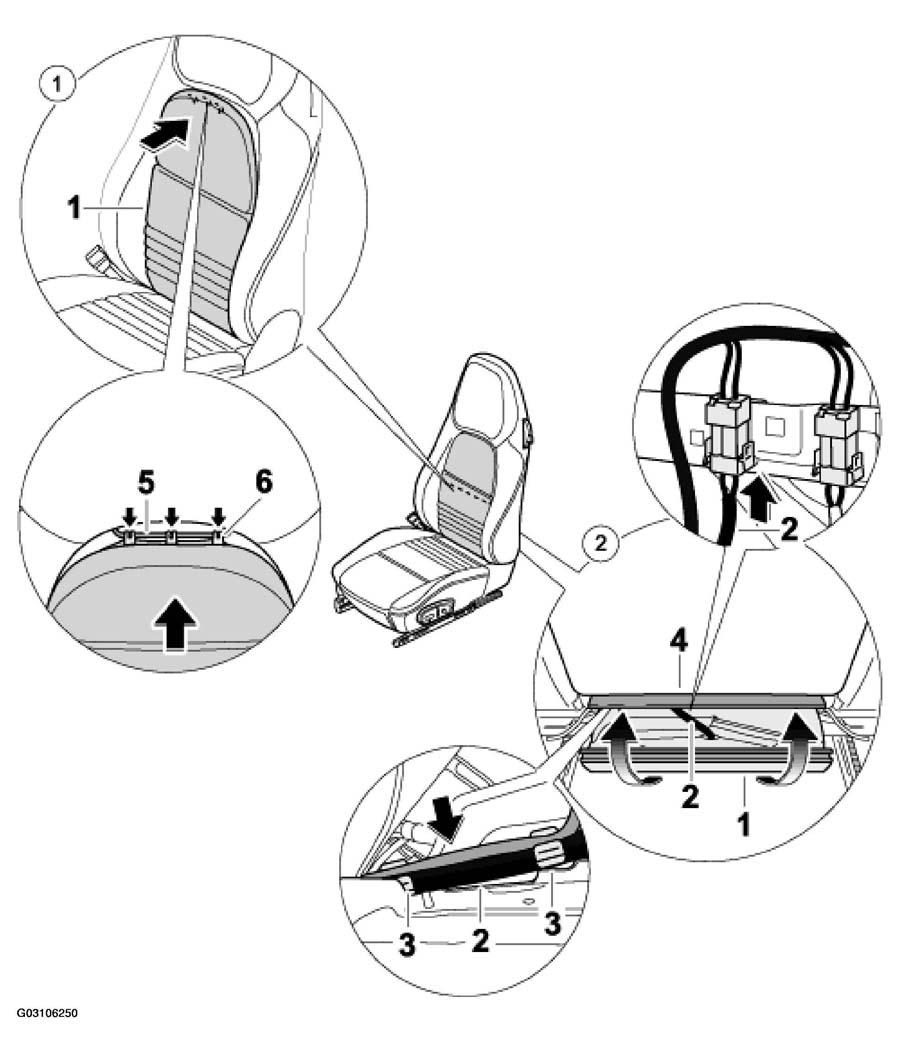

Fig 1: Installing Backrest Centre Strip
G03106250Courtesy of PORSCHE OF NORTH AMERICA, INC.
INSTALLING PROCEDURE FOR BACKREST CENTRE STRIP

No. Procedure Instructions
1 Clipping in the backrest centre strip at the top Press the bead -6-5-  . See Fig 1 .
2 Attaching the backrest centre strip at the bottom, inserting electrical plug connection Attach backrest centre strip -1-4-2-3-  . See Fig 1 .
