Assembling release for front lid

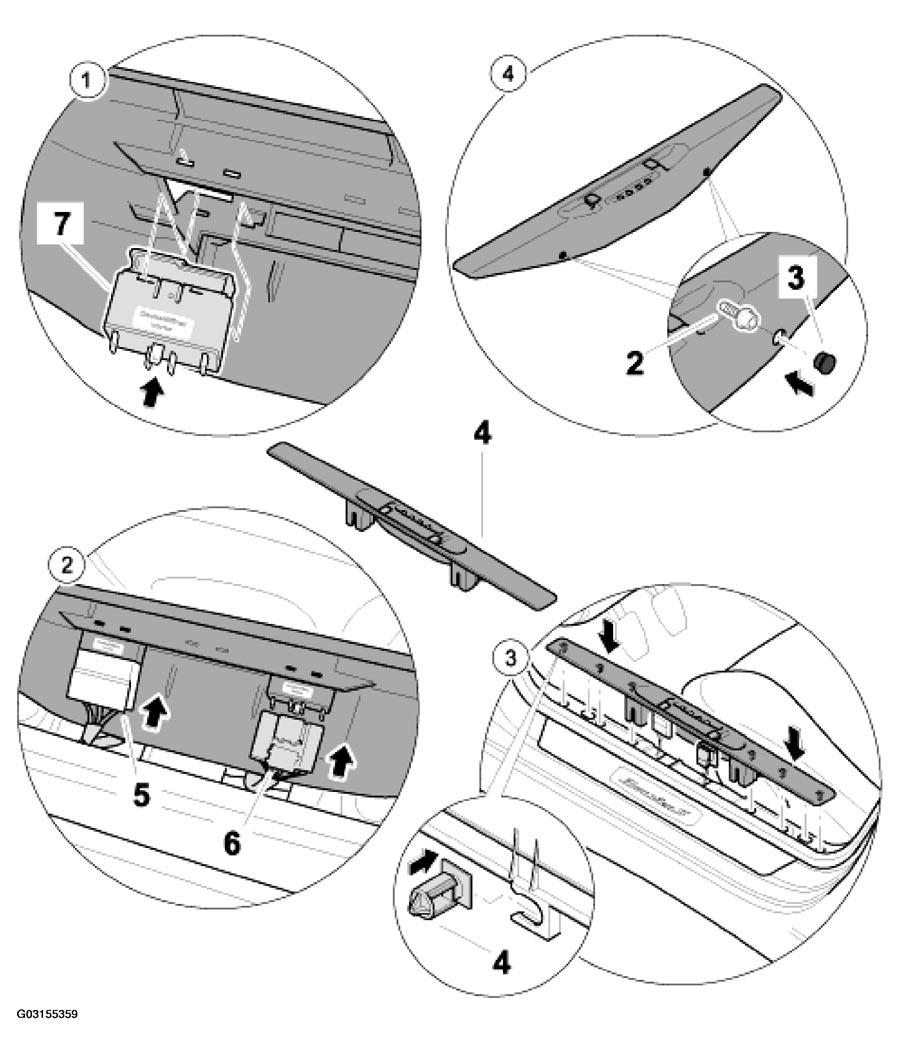

Fig 1: Assembling Release For Front Lid
G03155359Courtesy of PORSCHE OF NORTH AMERICA, INC.
ASSEMBLING RELEASE FOR FRONT LID INSTRUCTIONS

No. Procedure Instructions
1 Installing actuating switches of front lid -7-  . See Fig 1 . Clip the actuating switches of the front lid -7-  . See Fig 1 .
2 Joining plug connections -5, 6-  . See Fig 1 . Push plug connections -5, 6-  . See Fig 1 .
3 Putting on sill -1-  . See Fig 1 . Clip in new fastening clips -4-1-  . See Fig 1 .
4 Tightening hexagon socket head bolts -2-  . See Fig 1 . Screw in hexagon socket head bolts -2-3-  . See Fig 1 .
