Antenna Position - 911 Coupe

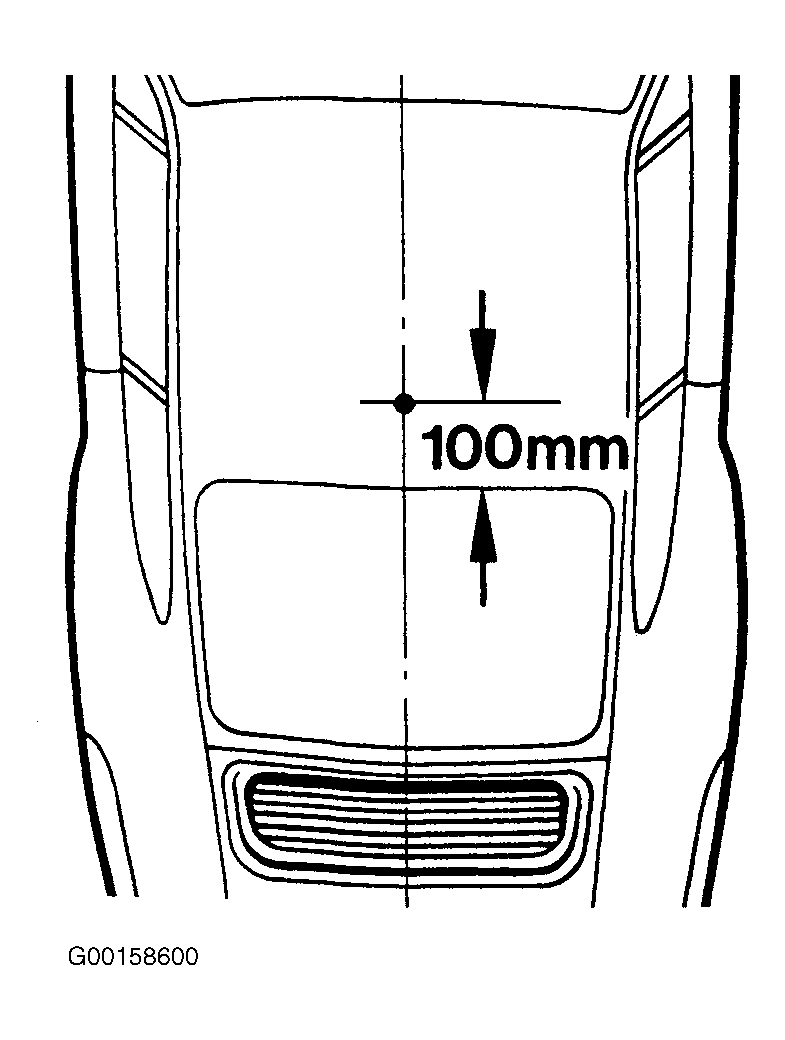

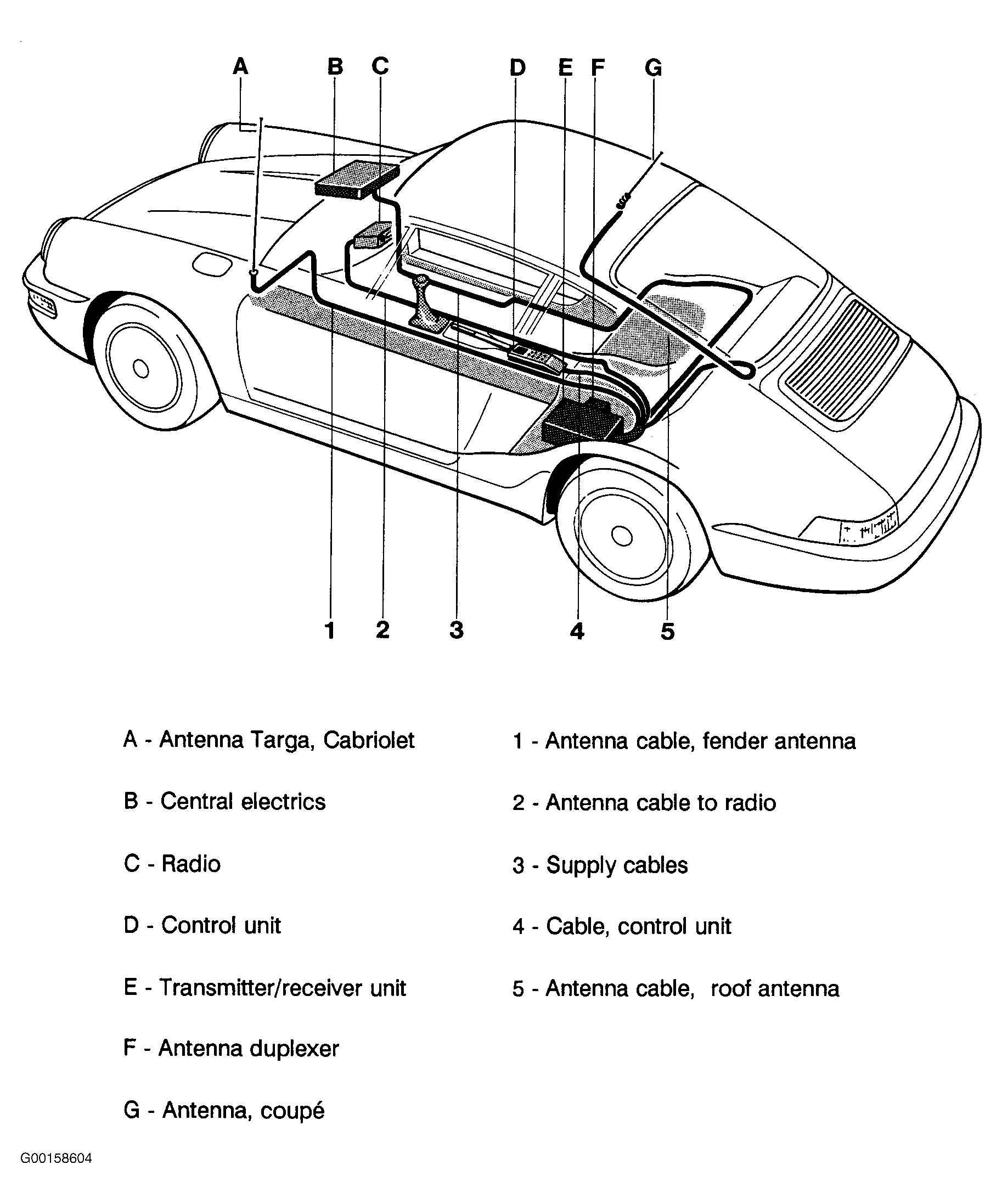

Antenna mounts through a hole drilled in the center of the car, 100mm from the rear window line. Hole is 21mm in diameter. See Fig 1 . The antenna cable is routed from the antenna to the B-column on the left, through the C-column under the insulation routing of the parcel shelf, over the rear wall to the occasional seat recess, and into the receiver unit/antenna duplexer. See Figure .
