Removing And Installing Gas Discharge Lamp (LITRONIC Headlights): Removal
- Switch off light. Disengage headlight housing and pull forwards a little.
- Disconnect the electrical plug connection of the automatic headlight beam adjustment (ALWR) take out headlight housing.
- Release cover with control module and open. Undo electrical plug connection on the gas discharge lamp (bayonet lock).

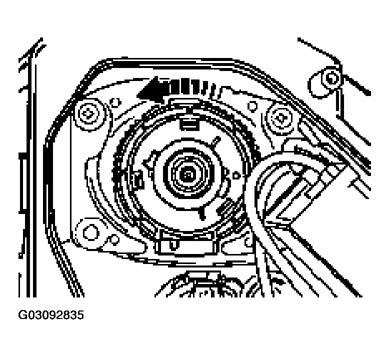

- Turn lamp fastener counterclockwise (bayonet lock) and remove with the gas discharge lamp.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
