Removing And Installing Drive Motor For Headlight Beam Adjustment: Removal

  1. Switch off light. Disengage headlight housing and pull forwards a little.
  2. Disconnect the electrical plug connection of the automatic headlight beam adjustment (ALWR) and remove headlight housing.
  3. Release cover with control module and open. Disconnect the electrical plug connection from the drive motor and undo the fastening screws (2 screws).

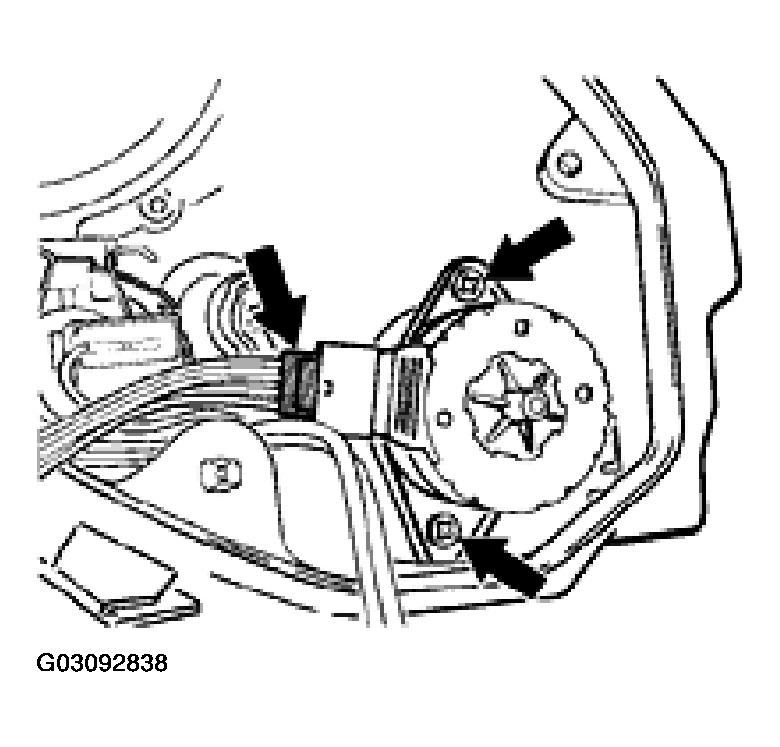

    Fig 1: Disconnecting Electrical Plug Connection From Drive Motor For Headlight Beam Adjustment
    G03092838Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Remove ignition unit (2 fastening screws).
  5. Press down unlocking lever with a screwdriver and pull drive motor out towards the rear.

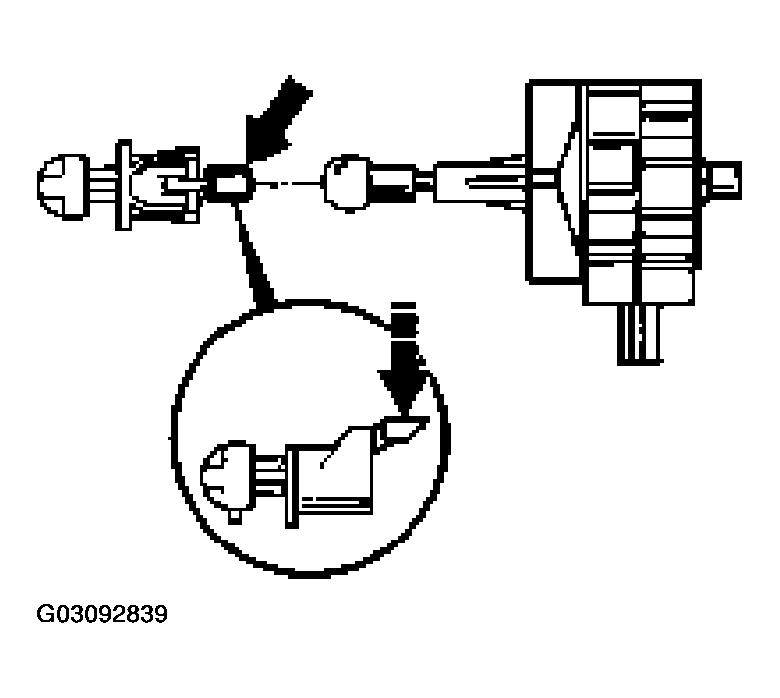

    Fig 2: Pressing Down Unlocking Lever & Removing Headlight Beam Adjustment Motor
    G03092839Courtesy of PORSCHE OF NORTH AMERICA, INC.
