Adjustment Procedure

1. Adjust fastening nuts to the same height as the old version and set up by hand.

   Figure shows mounting plate removed. See Fig 1 .

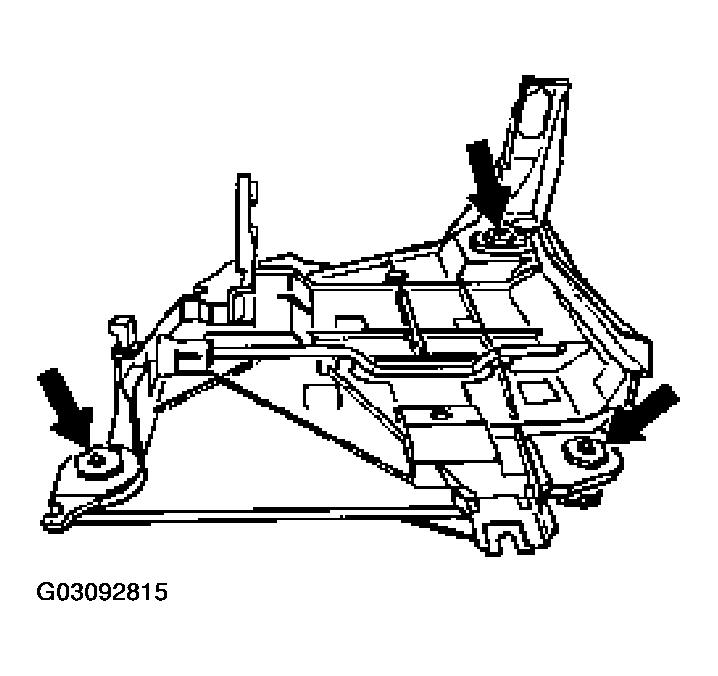

   Fig 1: Locating Fastening Nuts

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Press headlight housing firmly into the body and lock.
3. The correct adjustment is described in items A...C.
4. After adjustment, tighten the fastening nuts to 8 +/- 2 Nm (6 +/- 1.5 ft.lb). The headlight washer nozzle can be adjusted at the holder.

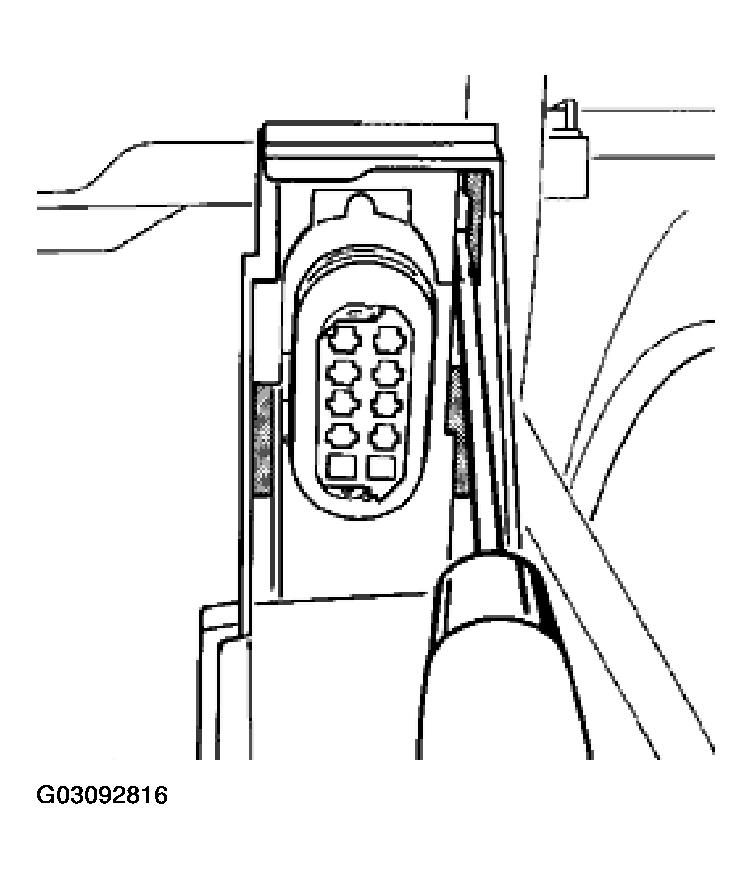

Fig 2: Locking Mounting Plate Using Screwdriver

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Before installing the headlight housing, ensure that the headlamp vent is plugged onto the plug housing.
