Adjustment Instructions

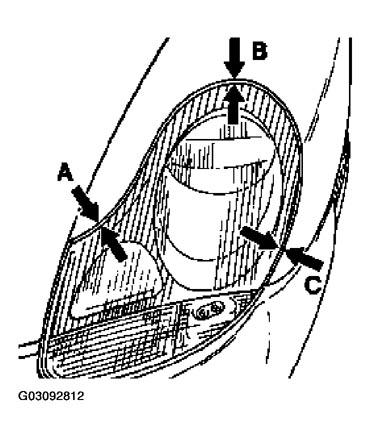

Fig 1: Identifying Headlight Adjustment Points

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Item A: The transition from the headlight housing to the body is in the same plane (level). See Fig 1 .

Items B and C: The headlamp housing should lie approximately 2 mm below the body edge. See Fig 1 .

NOTE:

The fastening nuts of the adjusting components are fitted at the factory. See Fig 2 .

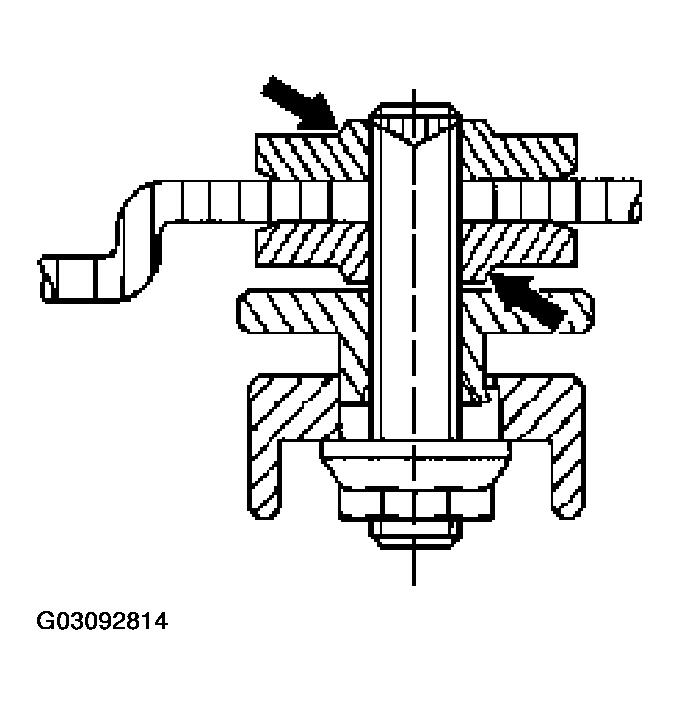

Fig 2: Identifying Fastening Nuts Seating Of Headlights (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

In the event of an accident repair or replacement of the headlights, the fastening nuts should be fitted. See Fig 3 . This ensures greater possibilities for adjusting the mounting plate.

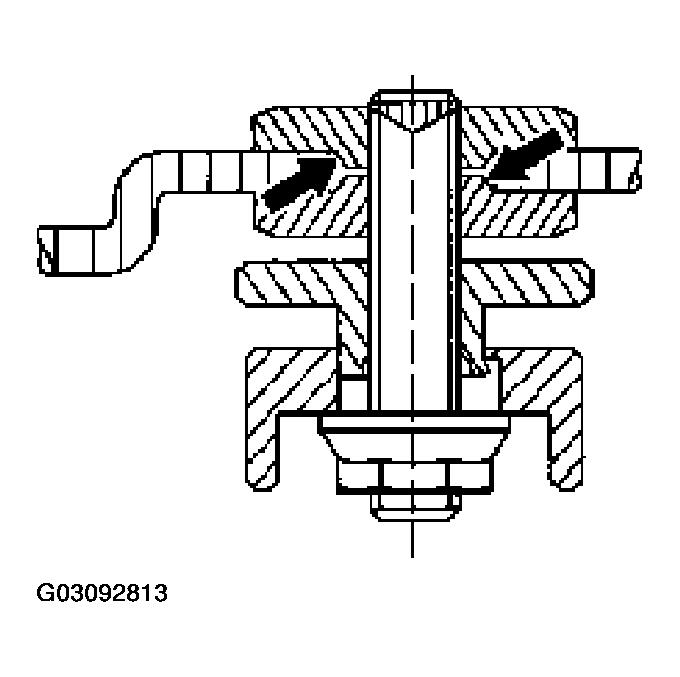

Fig 3: Identifying Fastening Nuts Seating Of Headlights (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
